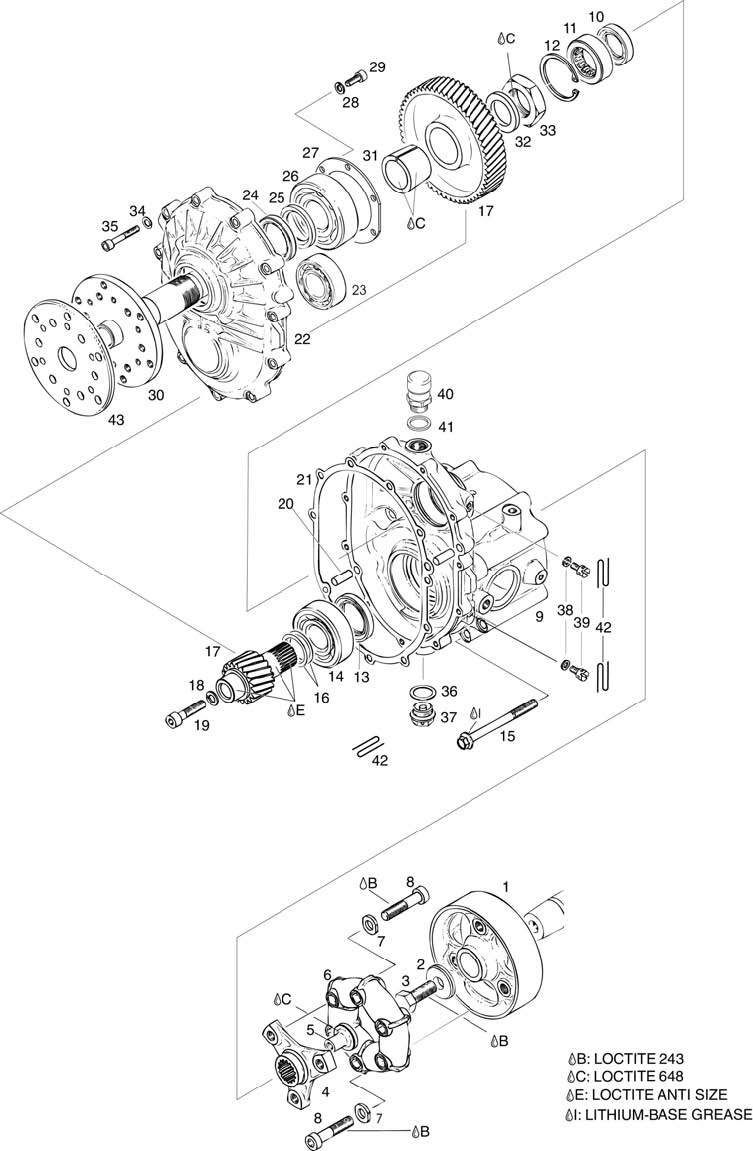

fig. 72-10-00-2
REDUCTION GEARBOX “C”: I= 2.62, I= 3.00, I= 3.47 OR I= 4.00 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 958981 | Fly Wheel | 296.35 | Add to Cart |
| 2 | 827788 | Washer 13/34/5 | 29.39 | Add to Cart |
| 3 | 841652 | Hex. Screw 1/2-2ounfx1 3/16 | 8.27 | Add to Cart |
| 4 | 958972 | Coupling Flange | 443.82 | Add to Cart |
| 5 | 842661 | Nut M8 | 46.8 | Add to Cart |
| 6 | 958964 | Rubber Coupling | 494.87 | Add to Cart |
| 7 | 944120 | Washer | 1.44 | Add to Cart |
| 8 | 841820 | Allen Screw M10x45 | 2.18 | Add to Cart |
| 9 | 810012 | Gear Box Housing | 504.06 | Add to Cart |
| 10 | 930675 | Oil Seal 25x38x7 | 5.36 | Add to Cart |
| 11 | 232287 | Roller Bearing 26,5-47-14 | 189.87 | Add to Cart |
| 12 | 945690 | Retaining Ring 47x1,75 | 2.38 | Add to Cart |
| 13 | 950084 | Oil Seal, 32x47x7 | 51.66 | Add to Cart |
| 14 | 932820 | Ball Bearing 6305 C3 / 25-62-17 | 40.1 | Add to Cart |
| 15 | 440367 | Collar Hex. Screw M8x90 A/f 11 | 22.59 | Add to Cart |
| 16 | 427021 | Shim 26,5/34/0,2 | 5.17 | Add to Cart |
| 17- | 886211 | Gear Set C 2,62 | 802.74 | Add to Cart |
| 17- | 886282 | Gear Set C 3,0 | 1081.36 | Add to Cart |
| 17- | 886284 | Gear Set C 3,47 | 1087.42 | Add to Cart |
| 17- | 886217 | No Longer Available | 647.45 | Add to Cart |
| 18 | 845310 | Lock Washer Vhz 8 | 0.55 | Add to Cart |
| 19 | 841594 | Allen Screw M8x35 | 1.29 | Add to Cart |
| 20 | 929940 | Pin 8x20 | 0.89 | Add to Cart |
| 21 | 950211 | Gasket | 13.96 | Add to Cart |
| 22 | 810021 | Gear Cover | 109.1 | Add to Cart |
| 23 | 932420 | Ball Bearing 6205 C3, 25-52-15 | 29.39 | Add to Cart |
| 24 | 930715 | Oil Seal 35x47x7 | 7.05 | Add to Cart |
| 25 | 944111 | Distance Ring 31/44/4,5 | 62.37 | Add to Cart |
| 26 | 932570 | Ball Bearing 6306 C3, 30-72-19 | 67.32 | Add to Cart |
| 27 | 944106 | Shim | 20.87 | Add to Cart |
| 28 | 445330 | Lock Washer Vhz 6 | 2.53 | Add to Cart |
| 29 | 241237 | Allen Screw M6x16 | 0.2 | Add to Cart |
| 30 | 837186 | Propeller Shaft | 798.91 | Add to Cart |
| 31 | 847757 | Splitted Cone Sleeve 1:10 | 290.02 | Add to Cart |
| 32 | 926201 | Massive Washer 30/44/5 | 40.28 | Add to Cart |
| 33 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 45.05 | Add to Cart |
| 34 | 945831 | Lock Washer A6 Din 128 | 0.2 | Add to Cart |
| 35 | 840888 | Allen Screw M6x30 Din 912 | 0.55 | Add to Cart |
| 36 | 552280 | Gasket Ring 18,2/24/1 | 0.35 | Add to Cart |
| 37 | 840270 | Magnetic Plug M18x1,5 | 22.94 | Add to Cart |
| 38 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.17 | Add to Cart |
| 39 | 841782 | Capstan Screw M6x10 | 14.48 | Add to Cart |
| 40 | 941115 | Air Vent Screw M18x1,5 | 26.73 | Add to Cart |
| 41 | 931200 | Gasket Ring 18,2/22/2 | 4.17 | Add to Cart |
| 42 | 297555 | Please Pick Up Locally | 176.84 | Add to Cart |
| 43 | 944140 | Cover Washer | 101.99 | Add to Cart |
