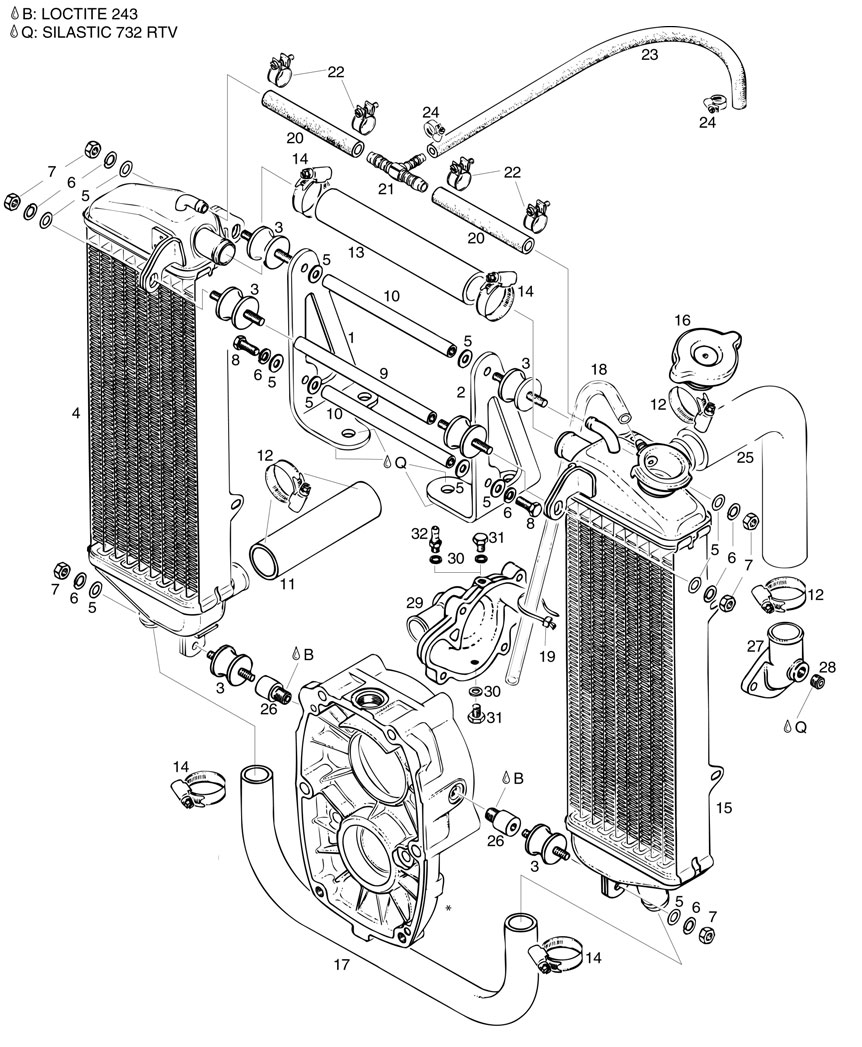

fig. 75-20-00-2
2-PIECE RADIATOR SET (HIGH CONFIGURATION) For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-25 | 881433 | Dual Radiator Set | 978.52 | Add to Cart |
| 1 | 851122 | Radiator Bracket Right, Long | 35.15 | Add to Cart |
| 2 | 851127 | Radiator Bracket Left, Long | 35.15 | Add to Cart |
| 3 | 260657 | Rubber Buffer 25x20xm6 | 13.25 | Add to Cart |
| 4 | 686330 | Radiator Without Filler Cap | 200.85 | Add to Cart |
| 5 | 244211 | Washer 6,4 Din 134 | 0.2 | Add to Cart |
| 6 | 945831 | Lock Washer A6 Din 128 | 0.2 | Add to Cart |
| 7 | 242214 | Hex.nut M6 | 0.22 | Add to Cart |
| 8 | 241187 | Hex.screw M6x16 | 0.2 | Add to Cart |
| 9 | 847600 | Distance Tube, 141 Mm | 138.93 | Add to Cart |
| 10 | 847605 | Distance Bolt, 131 Mm | 105.63 | Add to Cart |
| 11 | 922117 | Connecting Hose 110 Mm | 12.22 | Add to Cart |
| 12 | 951880 | Clamp 20-32 | 3.62 | Add to Cart |
| 13 | 922124 | Connecting Hose 150 Mm | 18.42 | Add to Cart |
| 14 | 951870 | Clamp 16-25 | 3.47 | Add to Cart |
| 15 | 686335 | Radiator With Filler Cap | 224.11 | Add to Cart |
| 16 | 922072 | Radiator Cap W/ Gasket, 1.2 Bar | 36.86 | Add to Cart |
| 17 | 922193 | Water Tube | 17.58 | Add to Cart |
| 18 | 974530 | Fuel Hose A5x8 | 17.95 | Add to Cart |
| 19 | 866710 | Clamp 142x2,5 Mm | 0.07 | Add to Cart |
| 20 | 956260 | Low Pressure Hose Gc 7,5 X 12,5 | 38.12 | Add to Cart |
| 21 | 974839 | Reduction T-peace 8-6-8 | 12.93 | Add to Cart |
| 22 | 951241 | Screw Hose Clamp 12 | 2.18 | Add to Cart |
| 23 | 860300 | Low Pressure Hose, Per Meter | 51.17 | Add to Cart |
| 24 | 951898 | Clamp 7-11 | 5.5 | Add to Cart |
| 25 | 922382 | Bent Hose 25/90 Degr. | 21.9 | Add to Cart |
| 26 | 847730 | Spacer 6,5/18/9 | 32.67 | Add to Cart |
| 27 | 922061 | Bent Outlet Socket | 44.06 | Add to Cart |
| 28 | 240481 | Plug Screw 1/8-27npt | 6.91 | Add to Cart |
| 29 | 922503 | Water Pump Housing | 382.63 | Add to Cart |
| 30 | 230415 | Gasket Ring A 6x10 Din 7603 | 0.17 | Add to Cart |
| 31 | 841581 | Hex. Screw M6x8 | 0.2 | Add to Cart |
| 32 | 940551 | Hose Nipple, M6 | 48.24 | Add to Cart |
