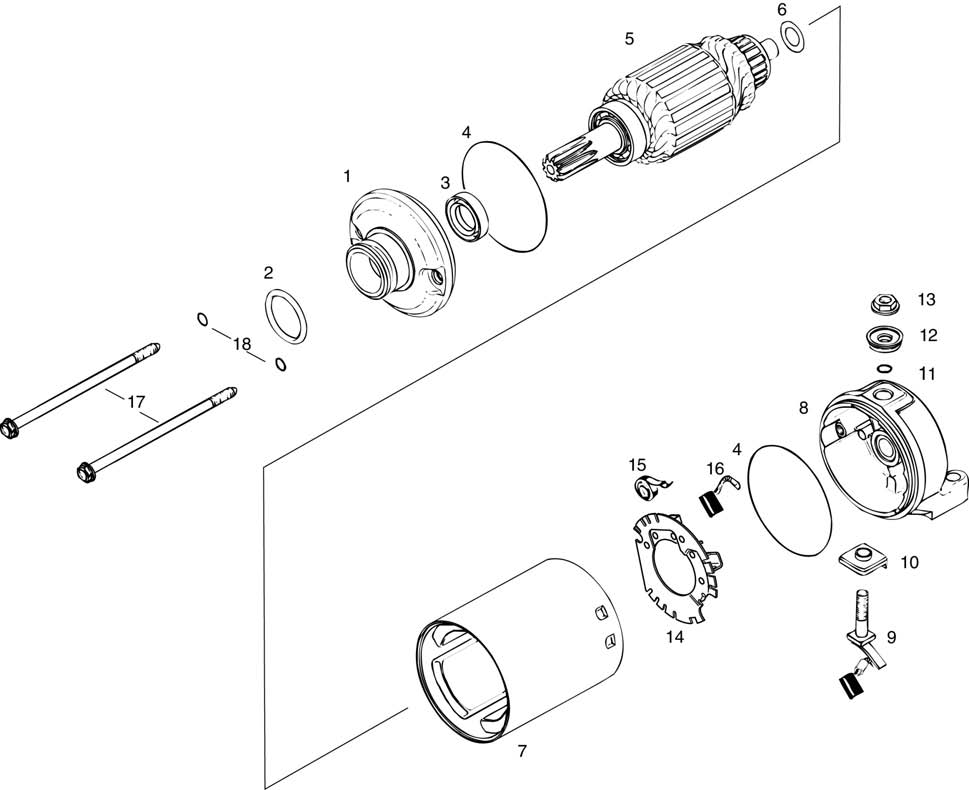

fig. 80-10-00-4
ELECTRIC STARTER-SINGLE PARTS, INT. IN REDUCTION GEAR “E” For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-19 | 685975 | Electric Starter Assy | 572.61 | Add to Cart |
| 2 | 250140 | O-ring Din 3771-24,4x3,1-n | 2.53 | Add to Cart |
| 3 | 250130 | Oil Seal 15x24x5 | 1.31 | Add to Cart |
| 4 | 850500 | O-ring 62-1,5 | 0.89 | Add to Cart |
| 6 | 827600 | Shim | 0.89 | Add to Cart |
| 7 | 264151 | Stator Yoke Assy | 256.59 | Add to Cart |
| 9 | 264184 | Brush Set, Type E Starter | 85.39 | Add to Cart |
| 10 | 260810 | Connector Sheath | 4.56 | Add to Cart |
| 11 | 230530 | O-ring 6x1,7 | 0.2 | Add to Cart |
| 12 | 260800 | Connector Sheath | 4.02 | Add to Cart |
| 13 | 242780 | Combined Nut M6 | 4.02 | Add to Cart |
| 14-16 | 866891 | Brush Holder With Spring | 30.69 | Add to Cart |
| 18 | 950420 | O-ring 5x1,5-n | 15.37 | Add to Cart |
