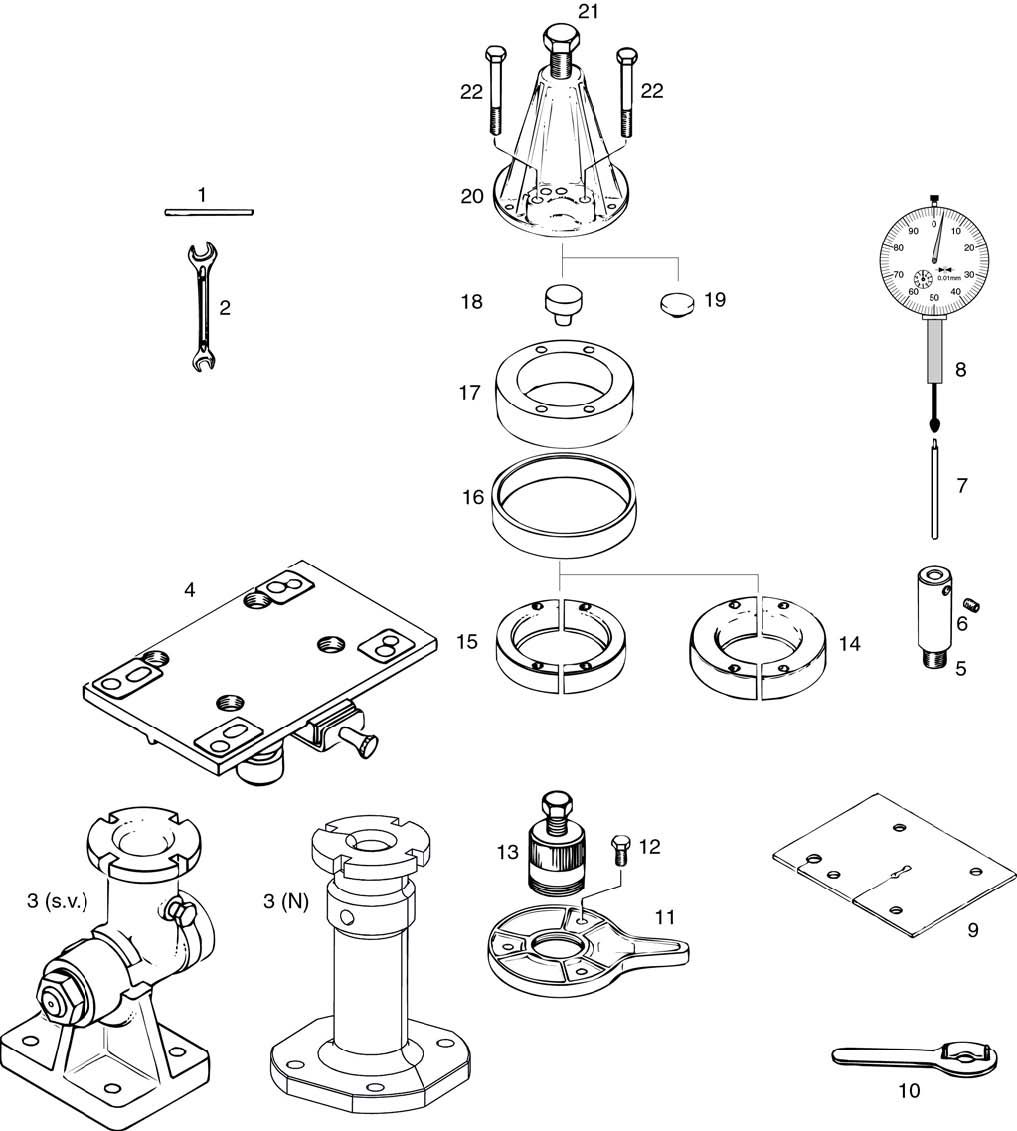

fig. 00-00-00-1
TOOLS P8 09065 For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 876640 | Crankshaft Fixation Bolt | 1.64 | Add to Cart |
| 2 | 276065 | Fork Wrench 10x13 Mm | 7.51 | Add to Cart |
| 3 | 877930 | Trestle Support | 493.51 | Add to Cart |
| 4 | 876746 | Mounting Plate With Detent | 257.92 | Add to Cart |
| 5n | 876940 | Gauge Adapter | 109.12 | Add to Cart |
| 6 | 841771 | Set Screw M6x8 | 0.35 | Add to Cart |
| 7 | 876945 | Gauge Pin | 7.61 | Add to Cart |
| 8 | 876950 | Precision Dial Gauge | 103.45 | Add to Cart |
| 9 | 877031 | Rubber Protection Mat | 30.64 | Add to Cart |
| 10 | 277905 | Wrench | 17.29 | Add to Cart |
| 11 | 876081 | Puller Plate | 54.43 | Add to Cart |
| 12 | 940592 | Hex.screw M8x20 | 0.89 | Add to Cart |
| 13 | 876066 | Puller M42x1,5 Assy | 174.76 | Add to Cart |
| 14 | 276025 | Ring Half | 56.54 | Add to Cart |
| 15 | 977475 | Ring Half | 115.08 | Add to Cart |
| 16 | 977490 | Ring | 55.4 | Add to Cart |
| 17 | 876569 | Distance Ring 72/105/28 | 88.78 | Add to Cart |
| 18 | 876553 | Protection Mushroom | 7.96 | Add to Cart |
| 19 | 876557 | Protection Mushroom | 13.46 | Add to Cart |
| 20-22 | 877636 | Puller Assy. | 118.14 | Add to Cart |
| 21 | 940755 | Hex. Screw M16x1,5x150 | 54.77 | Add to Cart |
| 22 | 841201 | Hex. Screw M8x70 | 1.04 | Add to Cart |
