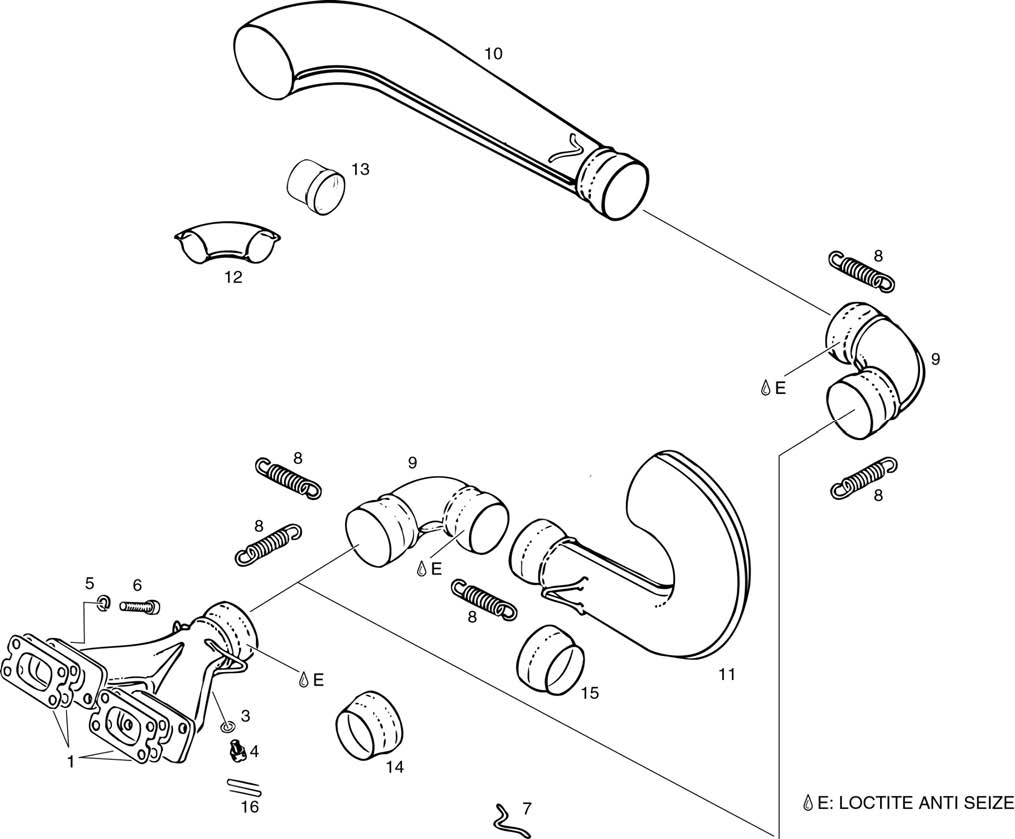

fig. 78-10-00-4
EXHAUST SYSTEMS SINGLE PARTS For ROTAX 582UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 850633 | Exhaust Gasket | 16.22 | Add to Cart |
| 2a | 973121 | Ex. Mainfold W/egt Taps,582 | 526.56 | Add to Cart |
| 2b | 973123 | Exhaust Manifold Assy. | 562.42 | Add to Cart |
| 3 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.25 | Add to Cart |
| 4 | 941615 | Capstan Screw M8x1x10 | 9.64 | Add to Cart |
| 5 | 945832 | Lock Washer A8 | 0.2 | Add to Cart |
| 6 | 840992 | Allen Screw M8x30 | 0.89 | Add to Cart |
| 7 | 853355 | Hook | 2.9 | Add to Cart |
| 8 | 938790 | Return Spring | 7.69 | Add to Cart |
| 8 | 938790 | Return Spring | 7.69 | Add to Cart |
| 9a | 973180 | Connecting Elbow Assy., | 471.79 | Add to Cart |
| 9b | 973182 | Connecting Elbow Assy., | 555.96 | Add to Cart |
| 10b | 973546 | Inlet Cone Assy., | 303.8 | Add to Cart |
| 11a | 973544 | Inlet Cone Assy., | 262.46 | Add to Cart |
| 12 | 879920 | Outlet Elbow Assy., | 66.51 | Add to Cart |
| 13 | 978640 | Outlet Tube | 6.02 | Add to Cart |
| 14 | 878660 | Ball Joint | 44.71 | Add to Cart |
| 15 | 878666 | Ball Joint | 44.71 | Add to Cart |
| 16 | 297555 | Please Pick Up Locally | 176.84 | Add to Cart |
