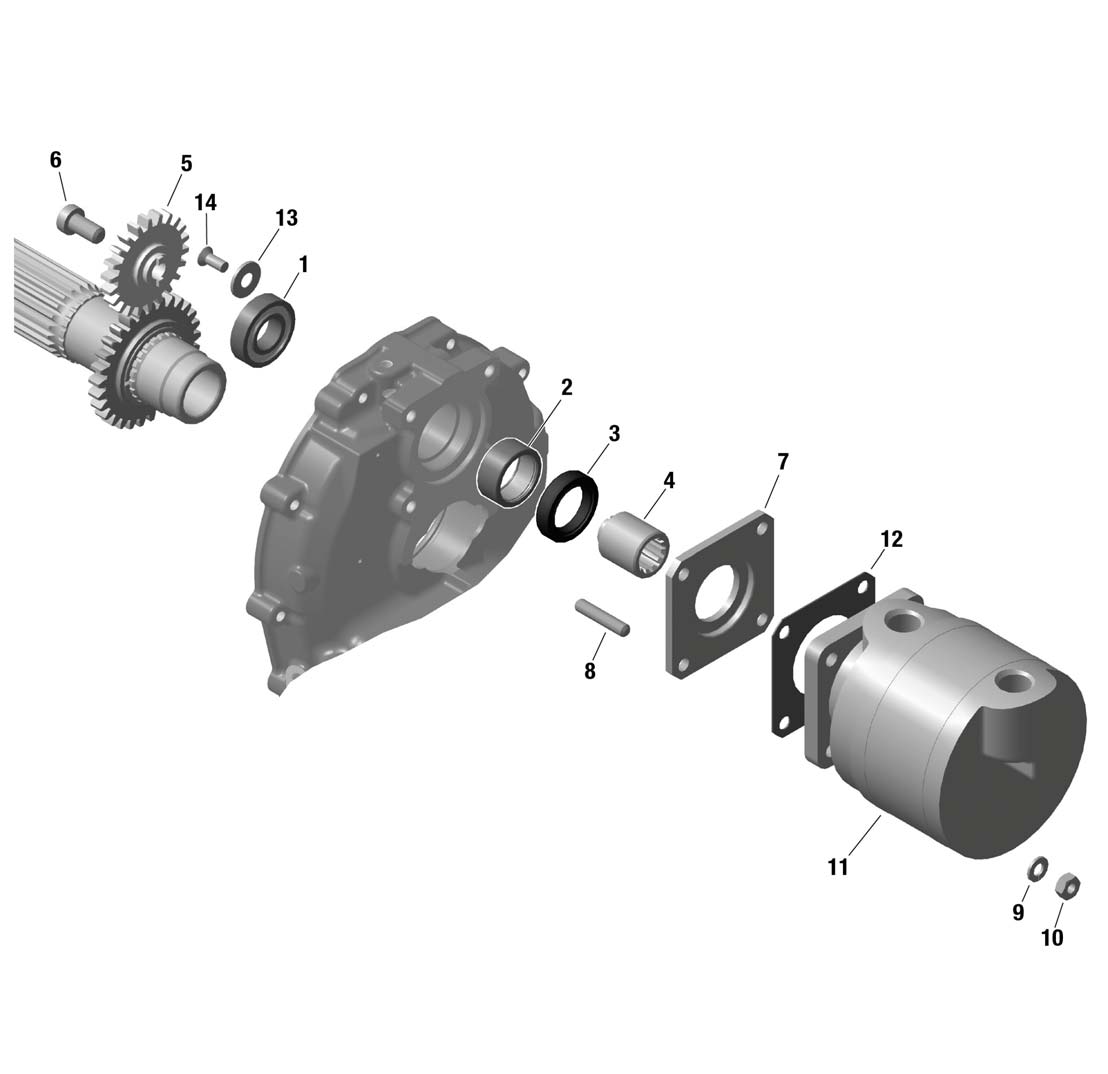

fig. 37-10-00-1
VACUUM PUMP WITH DRIVE For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 881690 | Vacuum Drive Kit | 796.14 | Add to Cart |
| 1 | 832363 | Ball Bearing 16002 | 264.46 | Add to Cart |
| 2 | 232925 | Needle Sleeve 22x28x12 | 14.29 | Add to Cart |
| 3 | 831265 | Oil Seal As 22x32x7 | 19.65 | Add to Cart |
| 5 | 834245 | Vacuum Pump Gear 22 T., | 192.03 | Add to Cart |
| 6 | 941527 | Allen Screw M8x14 | 1.64 | Add to Cart |
| 7 | 810170 | Attachment Flange | 349.05 | Add to Cart |
| 8 | 941080 | Stud M6x20/10 | 3.62 | Add to Cart |
| 9 | 945831 | Lock Washer A6 Din 128 | 0.2 | Add to Cart |
| 10 | 242214 | Hex.nut M6 | 0.22 | Add to Cart |
