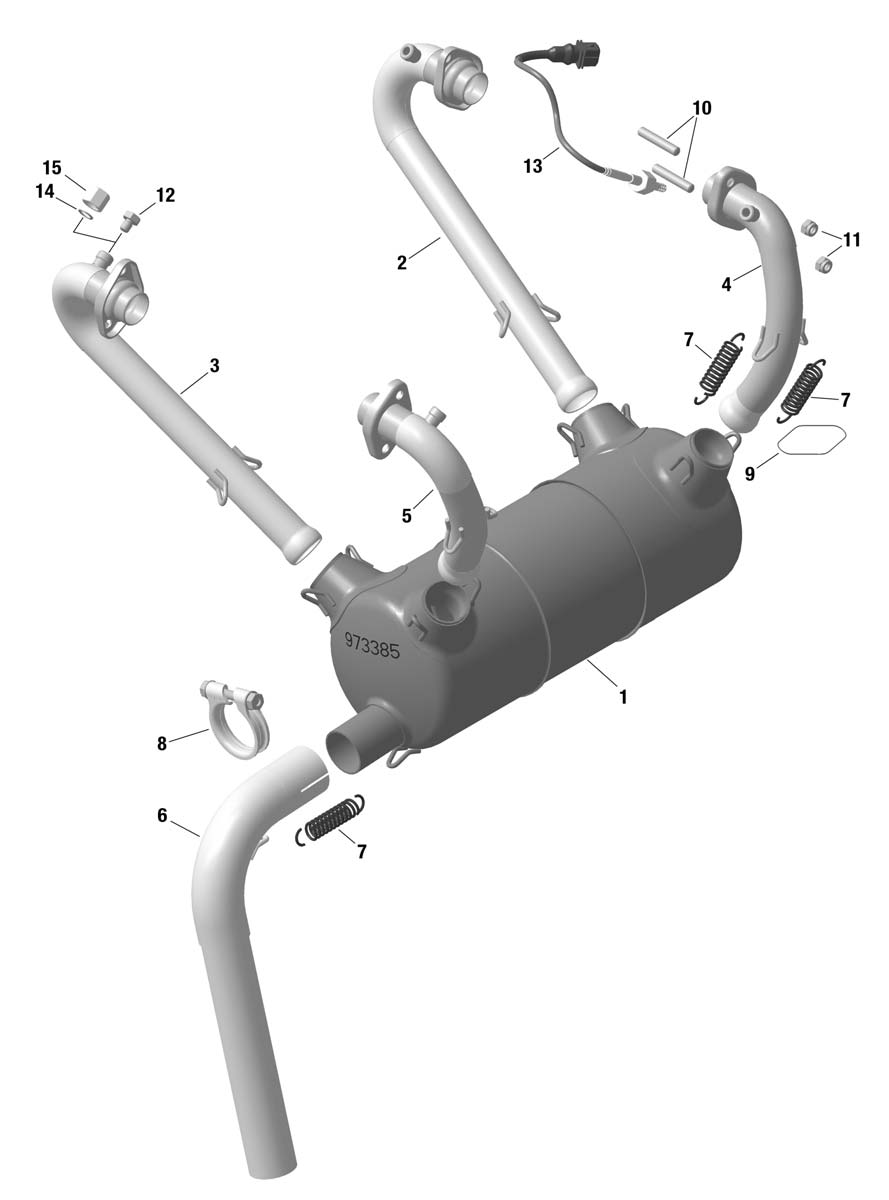

fig. 78-10-00-2
EXHAUST SYSTEM (STANDARD) For ROTAX 912IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-8 | 973383 | Exhaust Stainless | 2359.5 | Add to Cart |
| 1 | 973385 | Muffler Assy | 1760.56 | Add to Cart |
| 2 | 973010 | Exhaust Pipe Assy Cyl. 1 | 708.61 | Add to Cart |
| 3 | 973020 | Exhaust Pipe Assy Cyl. 2 | 687.62 | Add to Cart |
| 4 | 973030 | Exhaust Pipe Assy Cyl. 3 | 752.39 | Add to Cart |
| 5 | 973040 | Exhaust Pipe Assy Cul. 4 | 724 | Add to Cart |
| 6 | 973390 | Exhaust Elbow Stainless | 983.62 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 3.7 | Add to Cart |
| 7- | 938796 | Spring 66 Mm | 3.7 | Add to Cart |
| 8 | 951550 | Exhaust Pipe Clamp Assy | 49.5 | Add to Cart |
| 9 | 297555 | Please Pick Up Locally | 176.84 | Add to Cart |
| 10 | 940368 | Stud M8x23/20 | 2.18 | Add to Cart |
| 11 | 842950 | Lock Nut Din 14441 M8-sw12 | 1.44 | Add to Cart |
| 12 | 841115 | Hex Screw M8x1x10 | 9.37 | Add to Cart |
| 13 | 866261 | Temperature Sensor | 154.09 | Add to Cart |
| 14 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.17 | Add to Cart |
| 15 | 841115 | Hex Screw M8x1x10 | 9.37 | Add to Cart |
