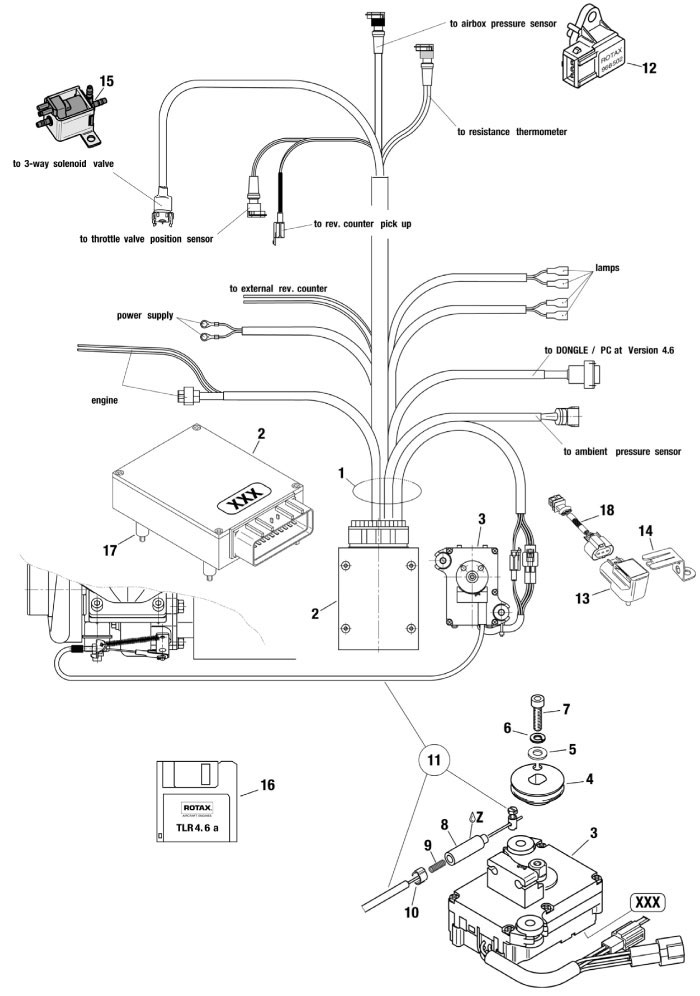

fig. 76-10-00-1
TURBOCHARGER CONTROL UNIT For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 966495 | Wiring Harness | 630.96 | Add to Cart |
| 2 | 966741 | 914 Turbo Control Unit Ver 4.6 | 2048.31 | Add to Cart |
| 3 | 295410 | Servo Motor | 719.34 | Add to Cart |
| 4 | 280088 | Rope Sheave | 133.2 | Add to Cart |
| 5 | 926180 | Washer 5,2x14,8x1,5 | 0.31 | Add to Cart |
| 6 | 945830 | Lock Washer A5 | 0.2 | Add to Cart |
| 7 | 441341 | Allen Screw M5x20 Din 912 | 1.44 | Add to Cart |
| 8 | 847882 | Cable Retainer | 58.23 | Add to Cart |
| 9 | 239015 | Spring | 1.84 | Add to Cart |
| 10 | 853845 | Clamp 5-7 Mm | 1.64 | Add to Cart |
| 11 | 897942 | Cable Bowden Assy. | 64.13 | Add to Cart |
| 12 | 966502 | Airbox Pressure Sensor | 224.18 | Add to Cart |
| 13 | 274051 | Static Pressure Sensor | 351.79 | Add to Cart |
| 14 | 924990 | Retaining Plate | 10.34 | Add to Cart |
| 15 | 881040 | 3-way Solenoid Valve Retrofit Kit | 686.64 | Add to Cart |
| 17 | 660772 | Rubber Buffer 10x15xm4 | 19.13 | Add to Cart |
| 18 | 666012 | Connector Cable | 211.83 | Add to Cart |
