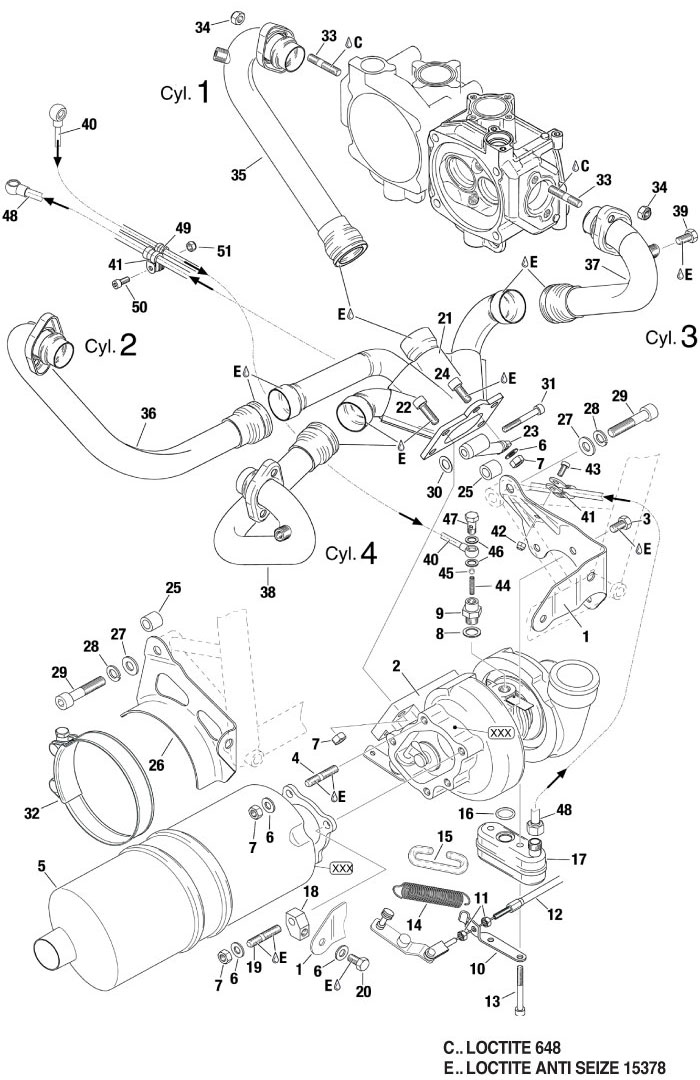

fig. 78-10-00-2c
MUFFLER, TURBOCHARGER, OIL SUMP CONTAINER For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 851294 | Turbo Bracket | 107.57 | Add to Cart |
| 2-4 | 887129 | Turbo Assy.,w/welded Wgate | 7659.98 | Add to Cart |
| 3 | 940583 | Hex. Screw M8x16 Stainless Steel | 1.46 | Add to Cart |
| 4 | 940173 | Stud M8x19,5/13 | 3.62 | Add to Cart |
| 5 | 979407 | Muffler Assy. Stainless Steel | 989.43 | Add to Cart |
| 6 | 250313 | Washer 8,4 Stainless Steel | 0.22 | Add to Cart |
| 7 | 242203 | Hex.nut M8 Stainless Steel | 0.62 | Add to Cart |
| 8 | 250646 | Gasket A 12x18-cu Din 7603 | 0.32 | Add to Cart |
| 9 | 956486 | Valve Housing | 166.4 | Add to Cart |
| 10 | 851392 | Cable Support | 10.01 | Add to Cart |
| 11 | 242214 | Hex.nut M6 | 0.22 | Add to Cart |
| 12 | 897942 | Cable Bowden Assy. | 64.13 | Add to Cart |
| 13 | 640600 | Hex Bolt, M6x55 | 9.4 | Add to Cart |
| 14 | 838232 | Tension Spring | 20.87 | Add to Cart |
| 15 | 960080 | Silicone Tube 5x8 - Sold Per Meter | 30.2 | Add to Cart |
| 16 | 430225 | O-ring 15,9-2,3 | 1.29 | Add to Cart |
| 17 | 956495 | Turbo Oil Sump | 200.2 | Add to Cart |
| 18 | 953280 | Support Plate | 120.18 | Add to Cart |
| 19 | 641343 | Stud M8x30/13 | 7.43 | Add to Cart |
| 20 | 940583 | Hex. Screw M8x16 Stainless Steel | 1.46 | Add to Cart |
| 21 | 979416 | Exhaust Manifold Assy. Stainless | 890.81 | Add to Cart |
| 22 | 240083 | Allen Screw M8x25 Stainless | 2.28 | Add to Cart |
| 23 | 953304 | Manifold Bracket Assy | 218.2 | Add to Cart |
| 24 | 240073 | Bolt M8x20 S/s | 0.89 | Add to Cart |
| 25 | 847841 | Spacer 10,5/17/15 | 17.77 | Add to Cart |
| 26 | 851303 | Exhaust Bracket | 99.85 | Add to Cart |
| 27 | 927411 | Washer 10,5 | 0.2 | Add to Cart |
| 28 | 945833 | Lock Washer A10 | 0.35 | Add to Cart |
| 29 | 640572 | Allen Screw M10x50 | 2.73 | Add to Cart |
| 30 | 926400 | Washer 8,4/15/0,5 | 2.93 | Add to Cart |
| 31 | 440107 | Allen Screw M8x50 Din 912 | 2.18 | Add to Cart |
| 32 | 851312 | Clamp 120 | 115.56 | Add to Cart |
| 33 | 940368 | Stud M8x23/20 | 2.18 | Add to Cart |
| 34 | 842950 | Lock Nut Din 14441 M8-sw12 | 1.44 | Add to Cart |
| 35 | 979427 | Exhaust Bend Cyl. 1 Stainless | 420.31 | Add to Cart |
| 36 | 979437 | Exhaust Pipe Assy. Cyl. 2 | 472.39 | Add to Cart |
| 37 | 979447 | Exhaust Pipe Assy. Cyl. 3 | 718.53 | Add to Cart |
| 38 | 979457 | Exhaust Bend Cyl. 4 Stainless | 471.93 | Add to Cart |
| 39 | 841115 | Hex Screw M8x1x10 | 9.37 | Add to Cart |
| 40 | 956476 | Turbo Oil Pressure Line | 228.53 | Add to Cart |
| 41 | 851111 | Cable Clamp 8/m5 | 31.86 | Add to Cart |
| 42 | 942021 | Lock Nut M5 | 0.2 | Add to Cart |
| 43 | 241842 | Allen Screw M5x12 | 1.44 | Add to Cart |
| 44 | 239131 | Compression Spring 22,0 | 1.84 | Add to Cart |
| 45 | 232441 | Ball 5,556 Mm | 0.87 | Add to Cart |
| 46 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.25 | Add to Cart |
| 47 | 840730 | Banjo Bolt M8x1x17 | 58.59 | Add to Cart |
| 48 | 956470 | Turbo Oil Suction Line | 166.67 | Add to Cart |
| 49 | 851116 | Cable Clamp 5/m5 | 32.18 | Add to Cart |
| 50 | 241842 | Allen Screw M5x12 | 1.44 | Add to Cart |
| 51 | 942021 | Lock Nut M5 | 0.2 | Add to Cart |
