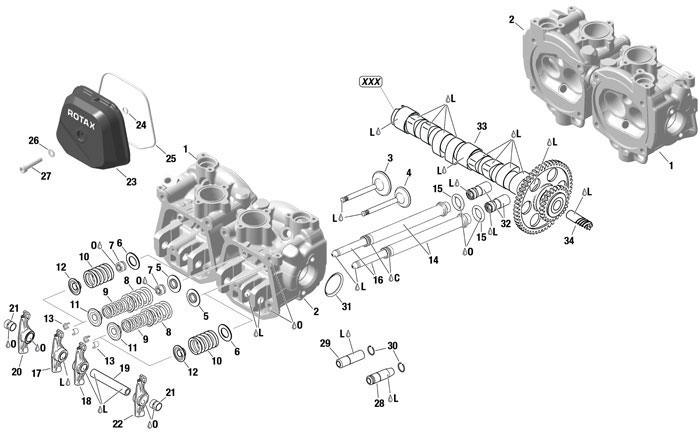

fig. 72-20-00-5
CYLINDERHEAD, VALVE TRAIN, VALVE COVER For ROTAX 914UL
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1- | 413237 | Cylinder Head 2/3 Assy | 1714.82 | Add to Cart |
| 2- | 413248 | Cylinder Head 1/4 Assy | 1714.82 | Add to Cart |
| 1- | 413186 | Cylinder Head 2/3 Assy., 912uls | 1714.82 | Add to Cart |
| 2- | 413196 | Cylinder Head 1/4 Assy.,912uls | 1755.26 | Add to Cart |
| 3 | 854101 | Intake Valve 38mm | 103.75 | Add to Cart |
| 4 | 854111 | Exhaust Valve 32mm | 179.67 | Add to Cart |
| 5 | 242032 | Hex.nut Bm6 | 0.2 | Add to Cart |
| 6 | 926210 | Shim 16/27.4/1 | 1.44 | Add to Cart |
| 7 | 230810 | Valve Stem Seal | 4.36 | Add to Cart |
| 10 | 838156 | Valve Spring | 16.73 | Add to Cart |
| 12 | 854188 | Valve Spring Retainer | 39.11 | Add to Cart |
| 13 | 253092 | Valve Cotter | 3.08 | Add to Cart |
| 14 | 924440 | Oil Return Tube | 11.7 | Add to Cart |
| 15 | 850930 | O-ring 16x5 | 2.73 | Add to Cart |
| 16 | 854862 | Valve Push-rod Assy., | 69.89 | Add to Cart |
| 19- | 854193 | Rocker Arm Shaft | 44.73 | Add to Cart |
| 19- | 854197 | Oversize Rocker Arm Shaft | 89.67 | Add to Cart |
| 20 | 854387 | Rocker Arm Left | 259.29 | Add to Cart |
| 21 | 933396 | Bushing Vespel | 67.5 | Add to Cart |
| 22 | 854397 | Rocker Arm Right | 259.29 | Add to Cart |
| 23- | 612263 | Valve Cover | 95.57 | Add to Cart |
| 23- | 612262 | Valve Cover 914 | 95.1 | Add to Cart |
| 23- | 612260 | Valve Cover | 95.1 | Add to Cart |
| 24 | 430205 | O-ring 6,4x1,8 | 0.35 | Add to Cart |
| 25 | 250285 | O-ring 105x2,5 | 8.6 | Add to Cart |
| 26 | 927941 | Washer 6,0/12/1 | 0.2 | Add to Cart |
| 27 | 840887 | Allen Screw M6x30 Din 912 | 0.89 | Add to Cart |
| 28 | 253114 | Inlet Valve Guide | 15.18 | Add to Cart |
| 29 | 854224 | Valve Guide 912s | 18.42 | Add to Cart |
| 30 | 245440 | Retaining Ring A12 Din 7999 | 0.35 | Add to Cart |
| 31 | 931920 | Gasket Ring | 97.07 | Add to Cart |
| 32 | 881832 | Hydraulic Valve Tappet Set | 1353.81 | Add to Cart |
