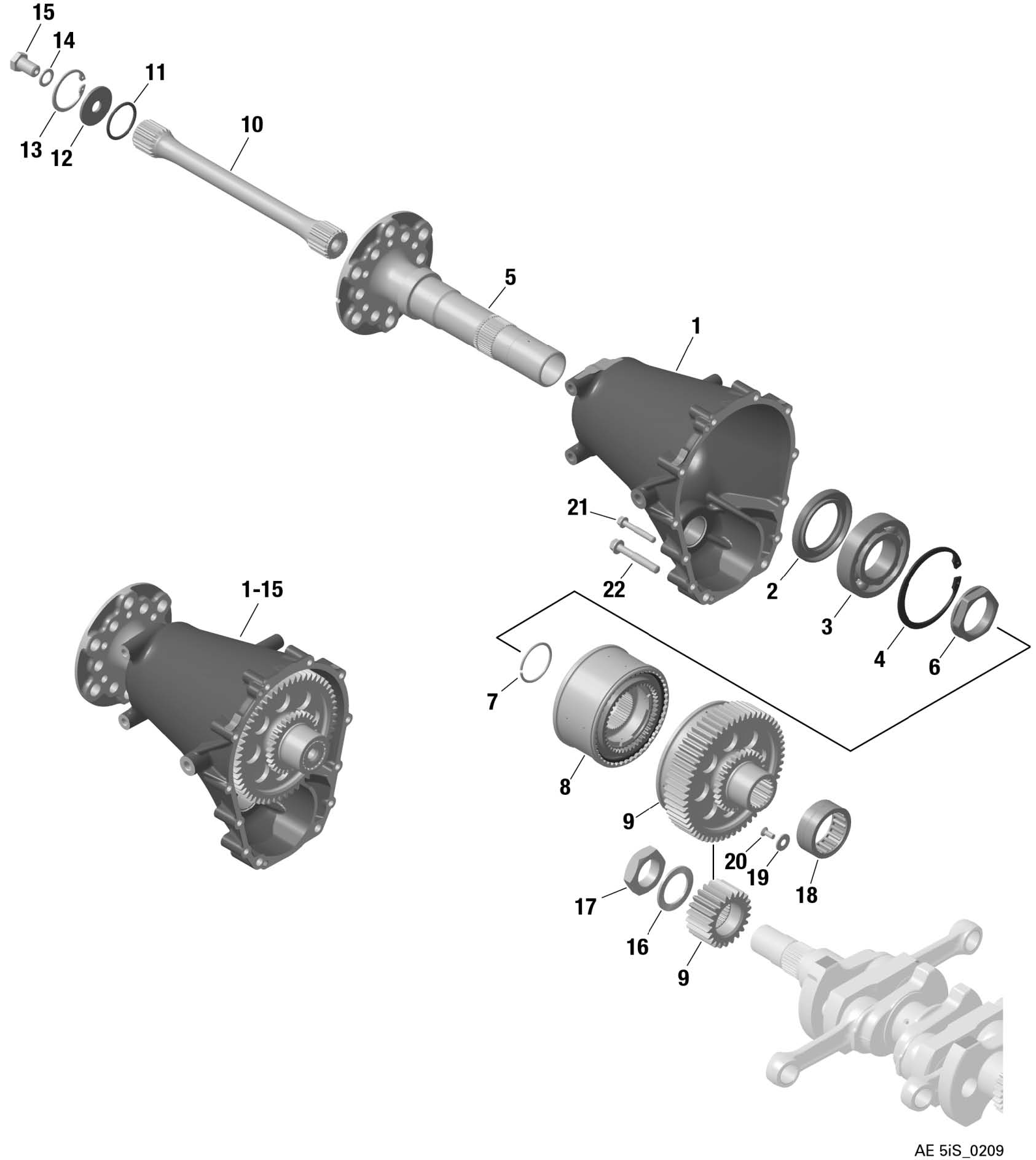

fig. 72-10-00-a
PROPELLER GEAR ASSY. For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1-15 | 686790 | Gearbox 915is Version 3 | 7949.22 | Add to Cart |
| 1 | 911286 | Gearbox Housing Assy. | 900.28 | Add to Cart |
| 2 | 950091 | Oil Seal As 48x72x8 Fkm | 30.69 | Add to Cart |
| 3 | 832062 | Ball Bearing 6208 Tn9 C3 | 319.42 | Add to Cart |
| 4 | 845121 | Retaining Ring 80x2.85 | 35.33 | Add to Cart |
| 5 | 837225 | Propeller Shaft | 1906.46 | Add to Cart |
| 6 | 942320 | Collar Nut M40x1.5 Lh | 68.91 | Add to Cart |
| 7 | 245935 | Retaining Ring A 38 | 2.73 | Add to Cart |
| 8 | 958419 | Damping Clutch Assy | 2883.97 | Add to Cart |
| 9 | 958425 | Overload Clutch Assy | 4453.54 | Add to Cart |
| 10 | 837206 | Torsion Shaft | 436.8 | Add to Cart |
| 11 | 230915 | O-ring Din 3771-33x3-n | 16.87 | Add to Cart |
| 12 | 827470 | Sealing Washer 40x12,1x2x5) | 17.72 | Add to Cart |
| 13 | 945880 | Retaining Ring 40x1,75 | 2.11 | Add to Cart |
| 14 | 250646 | Gasket A 12x18-cu Din 7603 | 0.32 | Add to Cart |
| 15 | 841150 | Hex Screw M12 X 20 A2-70 | 32.49 | Add to Cart |
| 16 | 845431 | Friction Washer Vs30 | 6.39 | Add to Cart |
| 17 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 45.05 | Add to Cart |
| 18 | 832952 | Needle Bearing Rna 49/32 | 439.17 | Add to Cart |
| 19 | 227280 | Thrust Washer | 2.18 | Add to Cart |
| 20 | 940316 | Countersunk Screw M5x12 | 0.55 | Add to Cart |
| 21 | 440282 | Sk/torx-flange Screw M6x40-sw8/t30 | 0.74 | Add to Cart |
| 22 | 940077 | Hex / Torx Flange Screw M8x45-sw10/t40 | 2.53 | Add to Cart |
