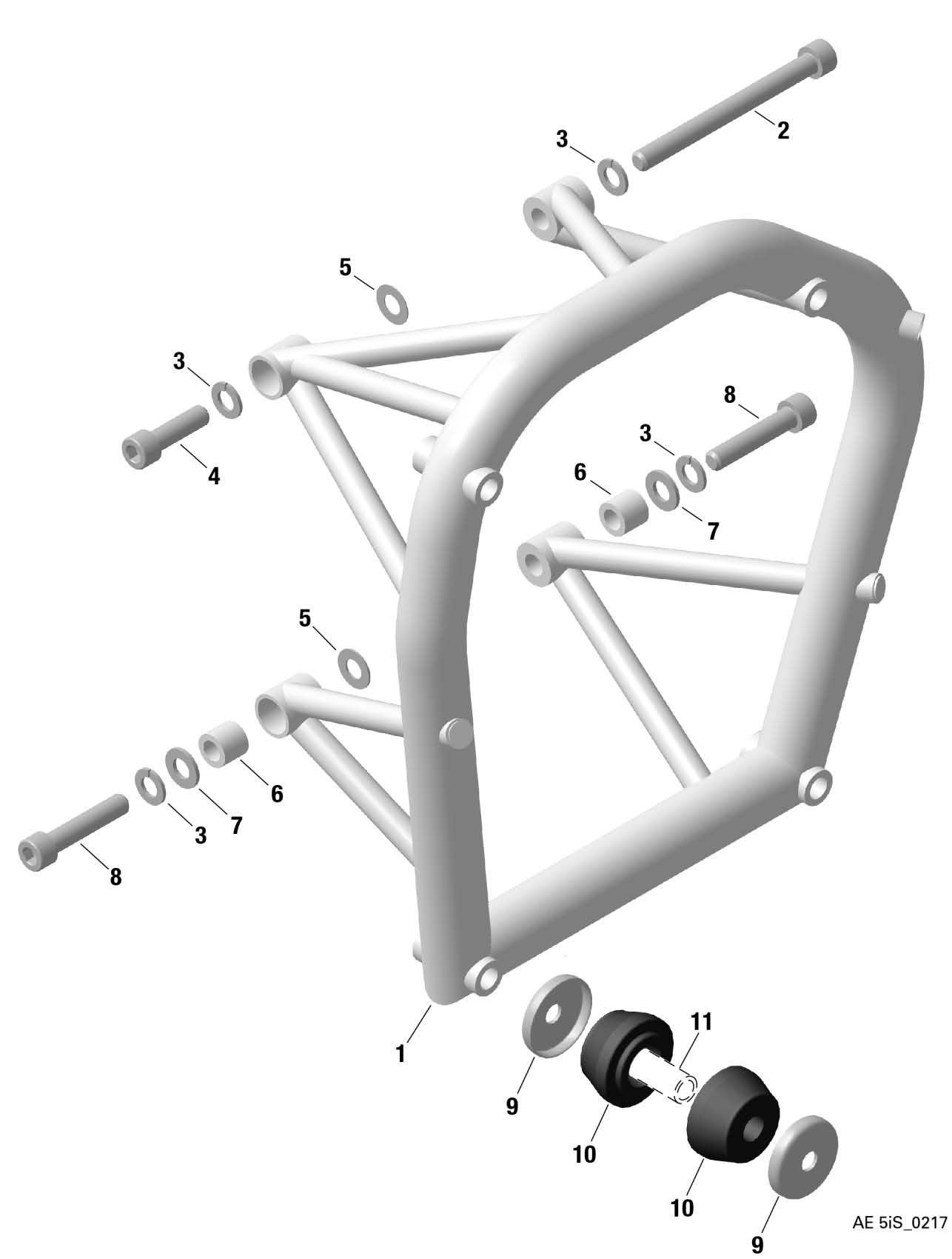

fig. 71-20-00
ENGINE SUSPENSION FRAME For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886563 | Engine Suspension Frame Assy | 1139.07 | Add to Cart |
| 2 | 941487 | Allen Screw M10x110 Din 912 | 4.71 | Add to Cart |
| 3 | 945833 | Lock Washer A10 | 0.35 | Add to Cart |
| 4 | 840948 | Allen Screw M10x35 Din 912 | 1.29 | Add to Cart |
| 5 | 927952 | Thrust Washer 10,1/20/0,5 | 4.56 | Add to Cart |
| 5 | 927953 | Thrust Washer 10,1/20/1,0 | 4.91 | Add to Cart |
| 6 | 847841 | Spacer 10,5/17/15 | 17.77 | Add to Cart |
| 7 | 927411 | Washer 10,5 | 0.2 | Add to Cart |
| 8 | 640572 | Allen Screw M10x50 | 2.73 | Add to Cart |
| 9-10 | 860695 | Shock Mount Set | 1167.73 | Add to Cart |
| 9 | 944240 | Cup Washer | 120.56 | Add to Cart |
| 10 | 860690 | Shock Mount | 121.92 | Add to Cart |
