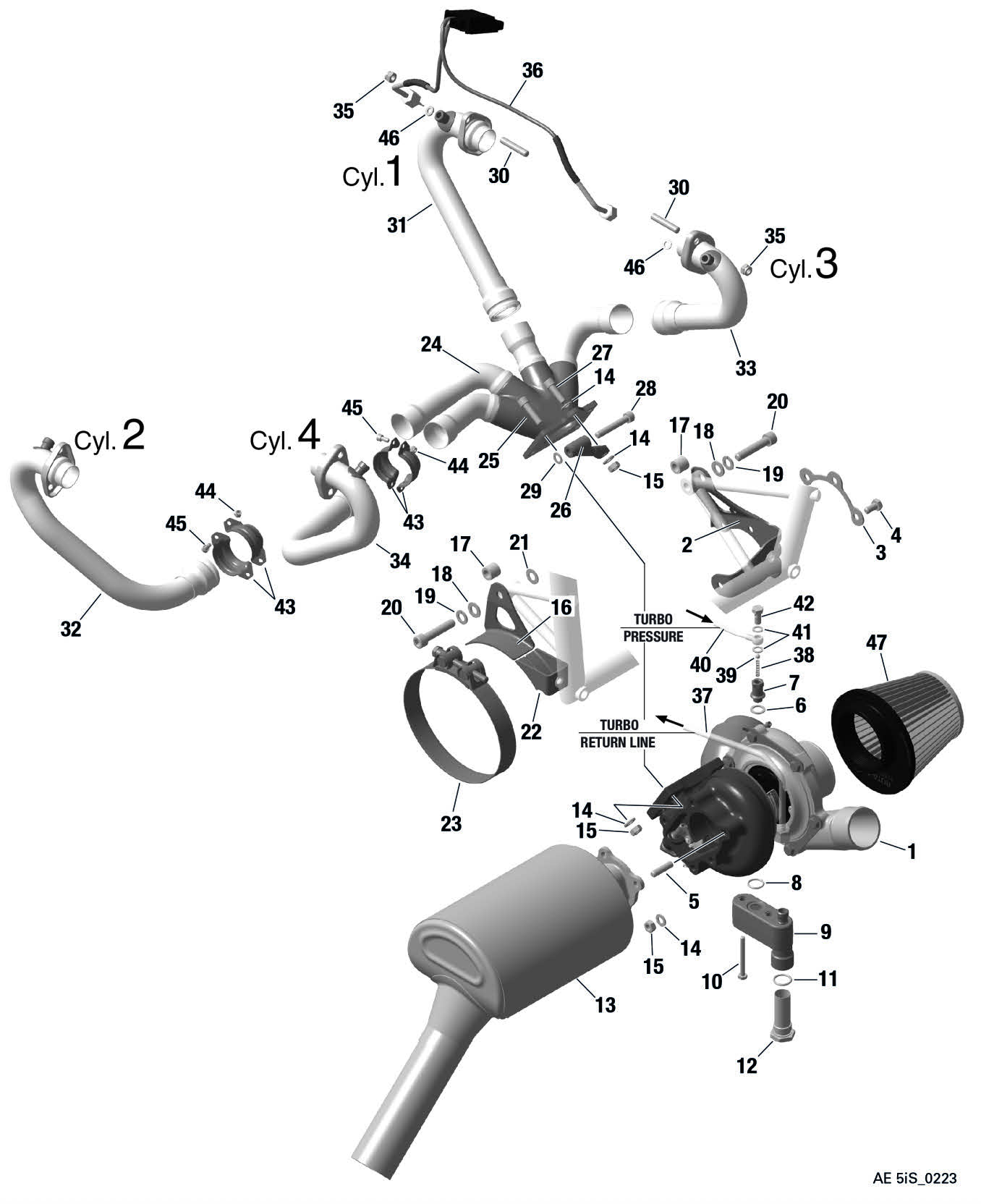

fig. 78-10-00
EXHAUST SYSTEM, EXHAUST TEMPERATURE SENSOR For ROTAX 915IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 893106 | Turbo Charger Assy | 7501.1 | Add to Cart |
| 2 | 851296 | Turbocharger Bracket | 80.45 | Add to Cart |
| 3 | 851305 | Reinforcement Sheet | 12.39 | Add to Cart |
| 4 | 940583 | Hex. Screw M8x16 Stainless Steel | 1.46 | Add to Cart |
| 5 | 940173 | Stud M8x19,5/13 | 3.62 | Add to Cart |
| 6 | 250646 | Gasket A 12x18-cu Din 7603 | 0.32 | Add to Cart |
| 7 | 956489 | Valve Housing | 84.57 | Add to Cart |
| 8 | 430225 | O-ring 15,9-2,3 | 1.29 | Add to Cart |
| 9 | 656770 | Oil Sump Assy | 278.43 | Add to Cart |
| 10 | 640600 | Hex Bolt, M6x55 | 9.4 | Add to Cart |
| 11 | 250057 | O-ring Din 3771-18x2,5-n, Fpm 75 | 0.42 | Add to Cart |
| 12 | 640860 | Plug Screw Assy M22 X 1.5 | 96.34 | Add to Cart |
| 13 | 979475 | Muffler Assy. | 1430.15 | Add to Cart |
| 14 | 250313 | Washer 8,4 Stainless Steel | 0.22 | Add to Cart |
| 15 | 242203 | Hex.nut M8 Stainless Steel | 0.62 | Add to Cart |
| 16 | 851680 | Exhaust Bracket | 53.84 | Add to Cart |
| 17 | 847841 | Spacer 10,5/17/15 | 17.77 | Add to Cart |
| 18 | 927411 | Washer 10,5 | 0.2 | Add to Cart |
| 19 | 945833 | Lock Washer A10 | 0.35 | Add to Cart |
| 20 | 640572 | Allen Screw M10x50 | 2.73 | Add to Cart |
| 21 | 927411 | Washer 10,5 | 0.2 | Add to Cart |
| 23 | 851445 | Clamp 140-148 | 133.62 | Add to Cart |
| 24 | 979563 | Exhaust Manifold | 978.15 | Add to Cart |
| 25 | 840993 | Allen Screw M8x30 | 2.18 | Add to Cart |
| 26 | 953306 | Manifold Bracket Assy. | 254.43 | Add to Cart |
| 27 | 240073 | Bolt M8x20 S/s | 0.89 | Add to Cart |
| 28 | 440107 | Allen Screw M8x50 Din 912 | 2.18 | Add to Cart |
| 29 | 926400 | Washer 8,4/15/0,5 | 2.93 | Add to Cart |
| 29 | 926401 | Washer 8,4/15/1 | 3.27 | Add to Cart |
| 29 | 926402 | Washer 8,4/15/1,5 | 3.47 | Add to Cart |
| 30 | 940368 | Stud M8x23/20 | 2.18 | Add to Cart |
| 31 | 979502 | Exhaust Pipe Cyl 1 | 464.45 | Add to Cart |
| 32 | 979512 | Exhaust Pipe Cyl 2 | 530.79 | Add to Cart |
| 33 | 979522 | Exhaust Pipe Cyl 3 | 456.69 | Add to Cart |
| 34 | 979533 | Exhaust Pipe Cyl 4 | 568.17 | Add to Cart |
| 35 | 842950 | Lock Nut Din 14441 M8-sw12 | 1.44 | Add to Cart |
| 36 | 866264 | Temperature Sensor | 817.32 | Add to Cart |
| 37 | 656760 | Turbo Oil Suction Line | 136.41 | Add to Cart |
| 38 | 239131 | Compression Spring 22,0 | 1.84 | Add to Cart |
| 39 | 232441 | Ball 5,556 Mm | 0.87 | Add to Cart |
| 40 | 656765 | Turbo Pressure Oil Line | 205.04 | Add to Cart |
| 41 | 950141 | Gasket Ring A 8x13 Din 7603 | 0.25 | Add to Cart |
| 42 | 840730 | Banjo Bolt M8x1x17 | 58.59 | Add to Cart |
| 43 | 979570 | Exhaust Pipe Clamp | 34.65 | Add to Cart |
| 44 | 901442 | Hex Nut Iso 7042 - M5 - A2 | 0.35 | Add to Cart |
| 45 | 240153 | Allen Screw M5x10 Iso 4762-a2=70 | 0.35 | Add to Cart |
| 46 | 244213 | Washer 6,4 | 0.22 | Add to Cart |
