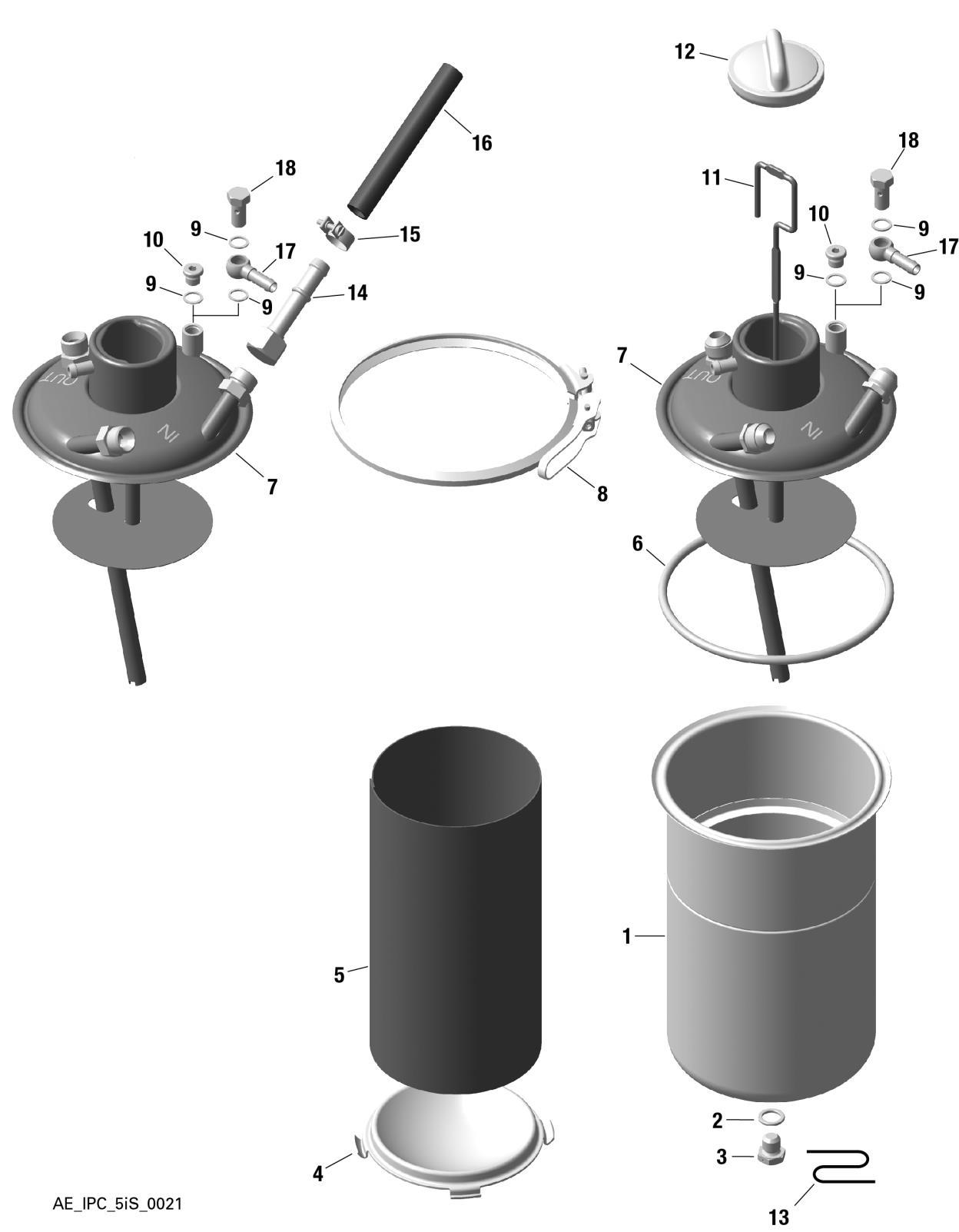

fig. 79-20-00-A
OIL TANK For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 656224 | Oil Tank Assy - Unf | 1089.41 | Add to Cart |
| 1 | 656226 | Oil Tank Assy - Metric | 1089.41 | Add to Cart |
| 1 | 656222 | Oil Tank Assy Unf Large | 1578.18 | Add to Cart |
| 2 | 250010 | Gasket Ring C 12x18 | 0.42 | Add to Cart |
| 3 | 241408 | Hex. Screw M12x12 | 44.87 | Add to Cart |
| 4 | 656861 | Partition 2 | 41.9 | Add to Cart |
| 5 | 956204 | Baffle Insert | 57.6 | Add to Cart |
| 6 | 850491 | O-ring 145x6 | 17.39 | Add to Cart |
| 8 | 951817 | Profile Clamp 163 | 99.43 | Add to Cart |
| 9 | 230150 | Gasket Ring 10x14 A Din 7603 | 0.17 | Add to Cart |
| 10 | 641733 | Plug Screw M10x1 | 10.86 | Add to Cart |
| 12 | 974650 | Oil Tank Cover Kpl | 183.53 | Add to Cart |
| 12 | 974647 | Oil Tank Cover, Without Venting | 23.09 | Add to Cart |
| 13 | 297555 | Please Pick Up Locally | 176.84 | Add to Cart |
| 14 | 956610 | Hose Nipple With Union Nut | 148.48 | Add to Cart |
| 15 | 951826 | Hose Clamp | 12.41 | Add to Cart |
| 16 | 956394 | Oil Line Per Meter 12x19 | 115.31 | Add to Cart |
| 17 | 956314 | Hose Nipple 4/6 Din7642 | 23.76 | Add to Cart |
| 18 | 241073 | Banjo Bolt M10x1x19 | 38.93 | Add to Cart |
