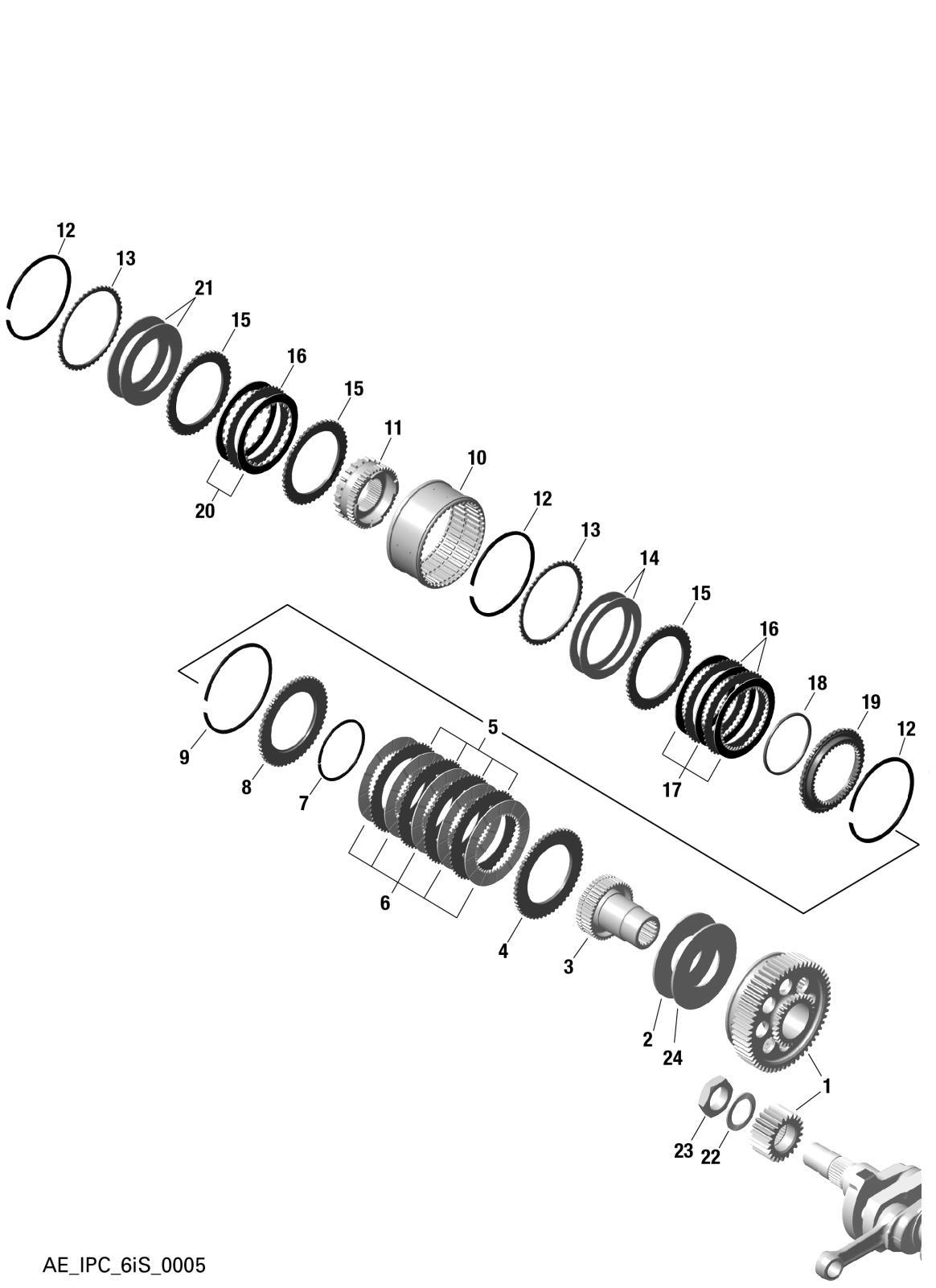

fig. 72-10-00-B
OVERLOAD CLUTCH, DAMPER CLUTCH For ROTAX 916IS
Click on Number to order Part
Your cart is Empty
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|
Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 886081 | Gear Set I 2,54 | 1600.33 | Add to Cart |
| 1 | 958425 | Overload Clutch Assy | 4453.54 | Add to Cart |
| 2 | 938092 | Disk Spring 102x49x2.8 | 193.22 | Add to Cart |
| 3 | 837233 | Intermediate Shaft | 1000.31 | Add to Cart |
| 4 | 958400 | Steel Friction Plate 4.0 Mm | 302.41 | Add to Cart |
| 5 | 958160 | Steel Friction Plate 1.0 | 14.48 | Add to Cart |
| 6 | 958176 | Sinter Friction Plate 1.8 Mm | 339.92 | Add to Cart |
| 7 | 945080 | Circlip Sw 68 | 3.62 | Add to Cart |
| 8 | 958402 | Steel Friction Plate 4,0 Mm | 196.62 | Add to Cart |
| 9 | 945075 | Circlip Sb 105 | 7.57 | Add to Cart |
| 10 | 958419 | Damping Clutch Assy | 2883.97 | Add to Cart |
| 11 | 958023 | Clutch Hub | 897.89 | Add to Cart |
| 12 | 945070 | Circlip Sb 93 | 10.15 | Add to Cart |
| 13 | 927021 | Support Ring | 192.79 | Add to Cart |
| 14 | 938098 | Disk Spring 91.5x71x1.5 | 208.49 | Add to Cart |
| 15 | 959420 | Steel Friction Plate 3.0 Mm | 166.25 | Add to Cart |
| 16 | 958932 | Steel Friction Plate 1.0 Mm | 15.7 | Add to Cart |
| 17 | 958993 | Friction Plate 1.54 Mm | 185.41 | Add to Cart |
| 18 | 847895 | Spacer Ring 69/64.1/3.0 | 88.21 | Add to Cart |
| 19 | 958103 | Driving Collar | 501.19 | Add to Cart |
| 20 | 958994 | Friction Plate 1.54 Mm | 185.41 | Add to Cart |
| 21 | 938099 | Disk Spring 91.5x60x2.1 | 207.09 | Add to Cart |
| 22 | 845431 | Friction Washer Vs30 | 6.39 | Add to Cart |
| 23 | 842579 | Hex. Nut M30x1.5 12mm, Lh | 45.05 | Add to Cart |
| 24 | 938093 | Disk Spring 102x49x2.8 | 132.92 | Add to Cart |
Showing 1 to 25 of 25 entries
