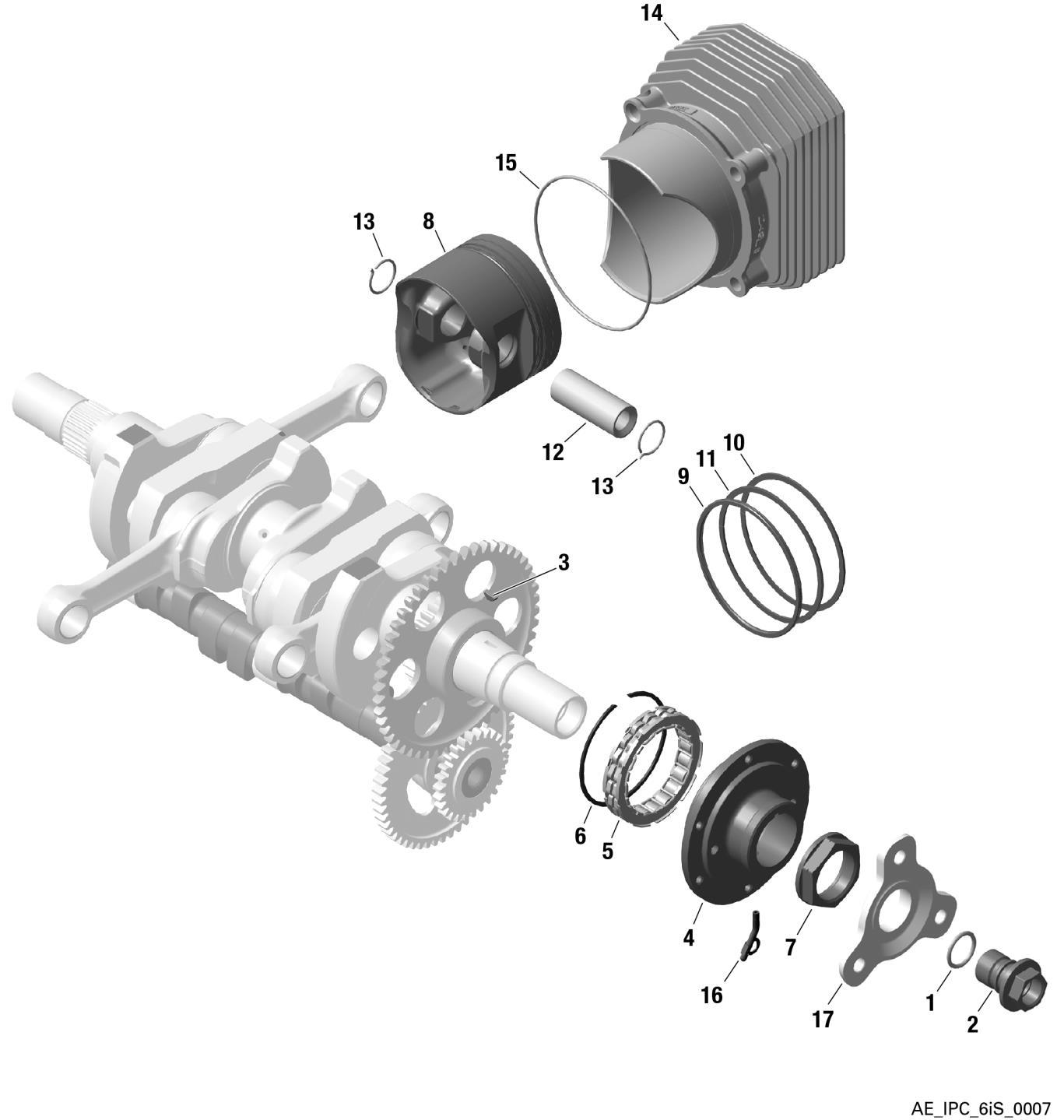

fig. 72-20-00-A
CRANKSHAFT, PISTON, CYLINDER, SPRANG CLUTCH For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 430225 | O-ring 15,9-2,3 | 1.29 | Add to Cart |
| 2 | 940526 | Plug Screw M20x1,5 | 138.25 | Add to Cart |
| 3 | 246055 | Woodruff Key 3x3,7 Din 6888 | 1.29 | Add to Cart |
| 4 | 852409 | Sprag Clutch Housing | 201.11 | Add to Cart |
| 5 | 958856 | Sprag Clutch 51,710x68,377x13 | 167.93 | Add to Cart |
| 6 | 845425 | Circlip 70 | 3.82 | Add to Cart |
| 7 | 942250 | Hex. Nut M32x1,5-lh | 48.33 | Add to Cart |
| 9 | 815230 | Oil Scraper Ring | 38.61 | Add to Cart |
| 10 | 815257 | Rectangular Ring 84/77x1,5 | 87.03 | Add to Cart |
| 11 | 815280 | Tapered Compression Ring | 26.24 | Add to Cart |
| 12 | 916380 | Piston Pin 20x12x51,3 | 115.82 | Add to Cart |
| 13 | 845106 | Mono Hook Circlip | 1.98 | Add to Cart |
| 14 | 913229 | 913 226 Use 913 229 | 632.23 | Add to Cart |
| 15 | 250510 | O-ring 87x2 | 5.88 | Add to Cart |
| 16 | 456540 | Oil Spray Nozzle Assy | 111.77 | Add to Cart |
| 17 | 953978 | Govenor Flange | 934.07 | Add to Cart |
