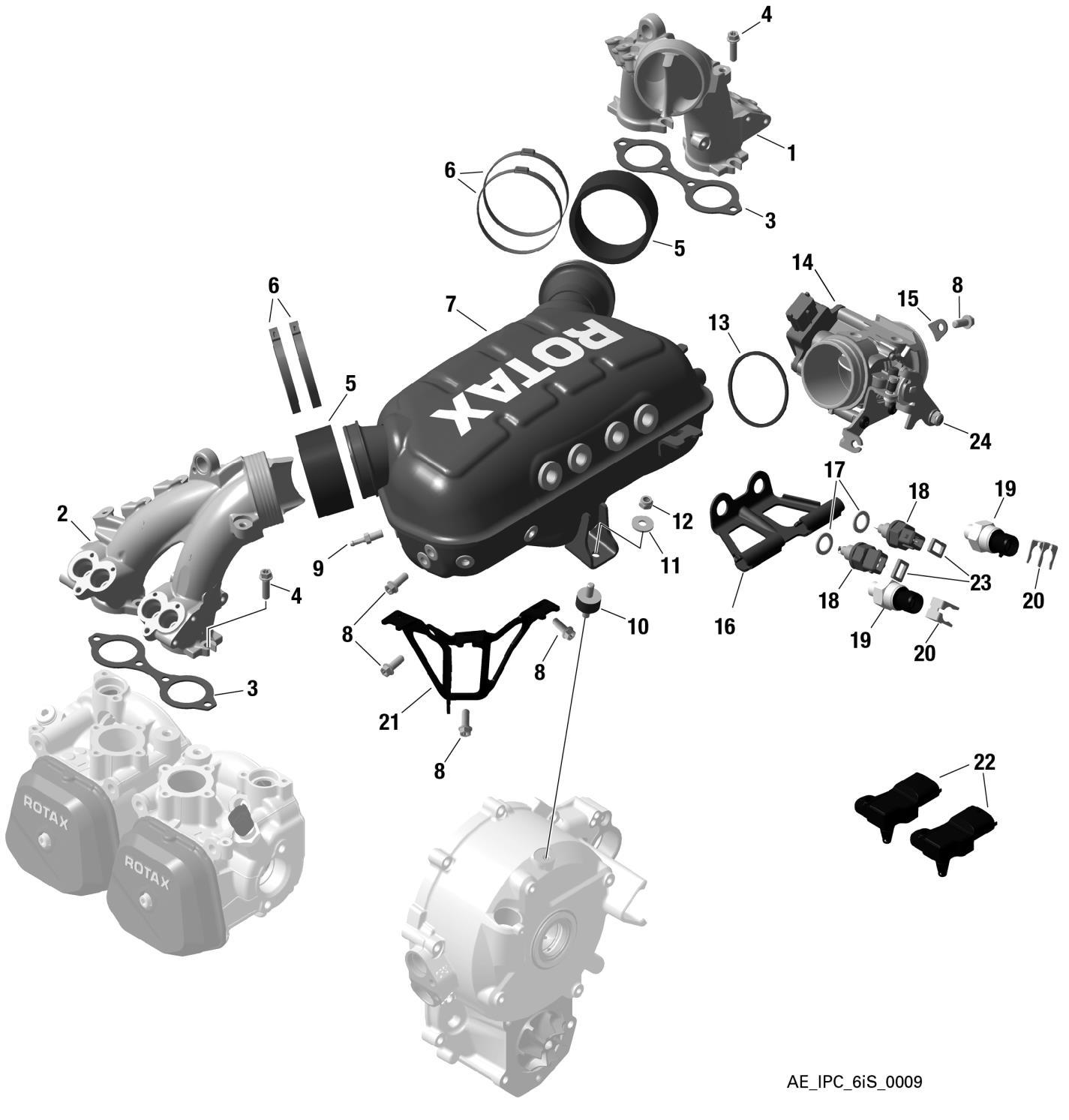

fig. 73-10-00-A
INTAKE MANIFOLD, AIRBOX, THROTTLE BODY SOCKET For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 667401 | Intake Manifold 1/3 | 365.64 | Add to Cart |
| 2 | 667406 | Intake Manifold 2/4 | 365.64 | Add to Cart |
| 3 | 850091 | Isolating Flange | 10.15 | Add to Cart |
| 4 | 440207 | Hex./torx-flange Screw M6x20-sw8/t30 | 0.55 | Add to Cart |
| 5 | 460421 | Connecting Socket | 14.29 | Add to Cart |
| 6 | 953093 | Clamp 66-69 Mm | 5.5 | Add to Cart |
| 8 | 440164 | Hex. Torx-flange Screw M6x16-sw8/t30 Mk | 0.89 | Add to Cart |
| 9 | 840672 | Hose Nipple M6 | 60.71 | Add to Cart |
| 10 | 860700 | Rubber 20x10xm6 | 10.34 | Add to Cart |
| 11 | 827968 | Washer 6,4 Din 9021 | 0.22 | Add to Cart |
| 12 | 842042 | Lock Nut M6 | 0.4 | Add to Cart |
| 13 | 850020 | Rubber Ring | 4.91 | Add to Cart |
| 14 | 685056 | Throttle Body Socket Assy. | 568.61 | Add to Cart |
| 15 | 953020 | Separating Plate | 1.09 | Add to Cart |
| 16 | 651780 | Connectory Bracket | 62.69 | Add to Cart |
| 18 | 222421 | Temperature Sensor | 66.08 | Add to Cart |
| 19 | 664364 | Pressure Sensor 2,0 | 500.48 | Add to Cart |
| 20 | 638140 | Clamp Map Sensor | 34.23 | Add to Cart |
| 21 | 951564 | Connector Bracket | 61.27 | Add to Cart |
| 22 | 874654 | Pressure-/temp. Sensor | 360.26 | Add to Cart |
| 23 | 850610 | Connetor Gasket | 8.98 | Add to Cart |
| 24 | 440000 | Fixing Screw Assy | 87.57 | Add to Cart |
