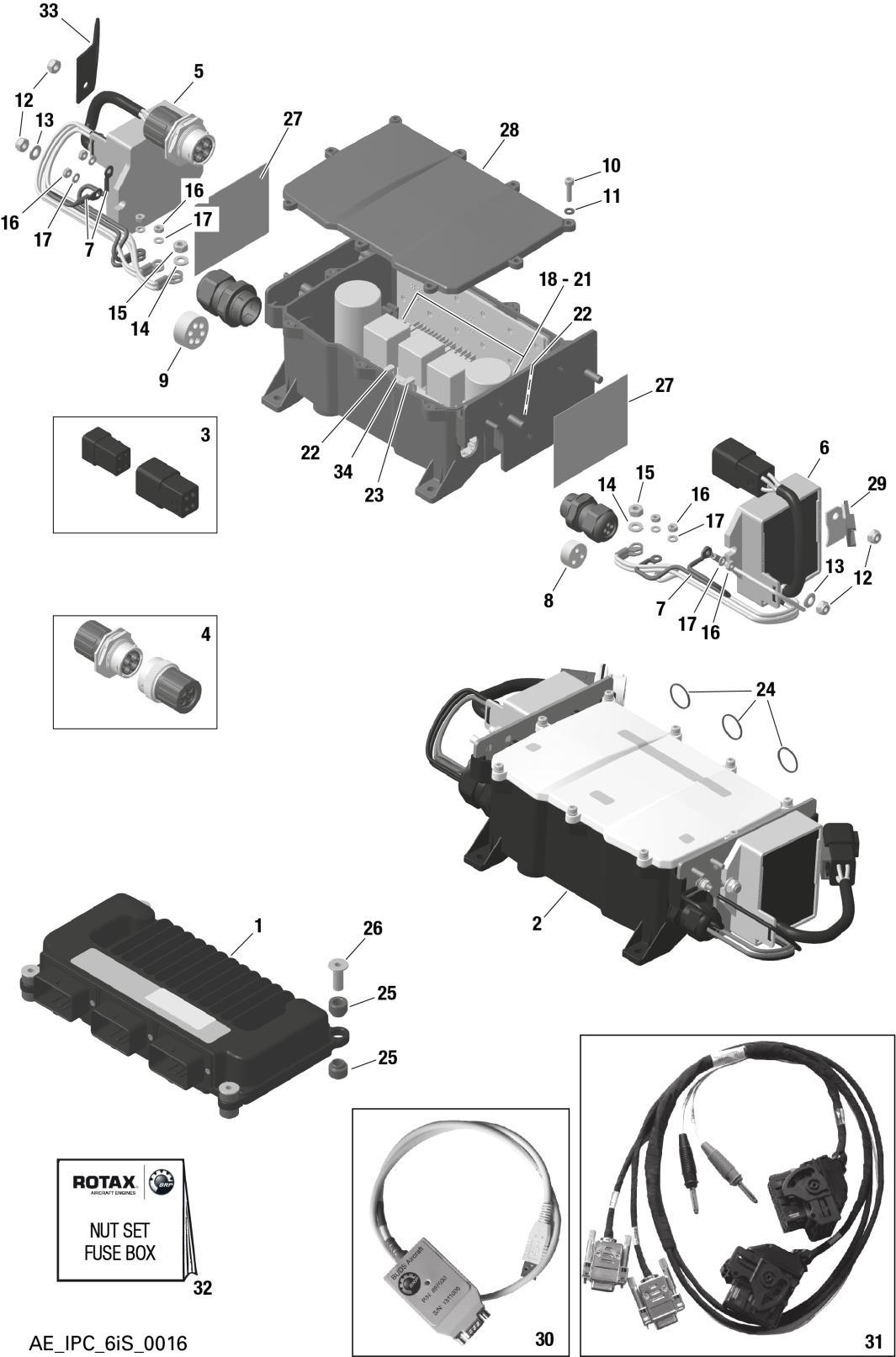

fig. 76-10-00
ENGINE CONTROL UNIT, FUSE BOX, REGULATOR For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 881258 | Ecu Engine Control Unit 916is | 12737.17 | Add to Cart |
| 2 | 881325 | Fuse Box Packaged | 3279.11 | Add to Cart |
| 3 | 866420 | Connector Set Black | 151.96 | Add to Cart |
| 4 | 481510 | Connector Set Stator Lane B | 436.12 | Add to Cart |
| 5 | 864397 | Regulator B - Connector Housing Amphenol | 575.98 | Add to Cart |
| 6 | 864392 | Regulator A-connector Black | 450.17 | Add to Cart |
| 7 | 866440 | Mass Cable Assy. | 14.81 | Add to Cart |
| 8 | 201370 | Skintop Click 20 | 16.22 | Add to Cart |
| 9 | 201375 | Skintop Click 25 | 8.79 | Add to Cart |
| 10 | 840763 | Allen Screw M4x16 Iso 4762-a2-70 | 3.47 | Add to Cart |
| 11 | 827230 | Plastic Washer M4 | 102.95 | Add to Cart |
| 13 | 244213 | Washer 6,4 | 0.22 | Add to Cart |
| 14 | 927573 | Washer 5,3 Din 125 | 0.74 | Add to Cart |
| 15 | 842033 | Lock Nut M5 | 0.2 | Add to Cart |
| 16 | 242538 | Lock Nut Din 985-m4-a2 | 0.22 | Add to Cart |
| 17 | 244078 | Washer 4,3 Din 125 | 0.35 | Add to Cart |
| 18 | 866450 | Mini-fuse 2a | 3.82 | Add to Cart |
| 19 | 866452 | Mini-fuse 5a | 3.82 | Add to Cart |
| 20 | 866454 | Mini-fuse 7,5a | 3.82 | Add to Cart |
| 21 | 866456 | Mini-fuse 10a | 8.46 | Add to Cart |
| 22 | 866490 | Ato-fuse 20a | 3.82 | Add to Cart |
| 23 | 866492 | Ato-fuse 35a | 3.82 | Add to Cart |
| 24 | 931110 | O Ring | 15.32 | Add to Cart |
| 25 | 201460 | Rubber Sleeve | 36.45 | Add to Cart |
| 26 | 947540 | Spacer | 37.24 | Add to Cart |
| 27 | 282870 | Heat Plate | 32.99 | Add to Cart |
| 28 | 201690 | Cover, Fuse Box | 257.49 | Add to Cart |
| 29 | 951983 | Connector Bracket | 41.85 | Add to Cart |
| 32 | 881555 | Nut Set Fuse Box | 174.65 | Add to Cart |
| 33 | 951981 | Connector Bracket | 95.1 | Add to Cart |
| 34 | 866150 | Switch Relay 12v Dc | 93.9 | Add to Cart |
