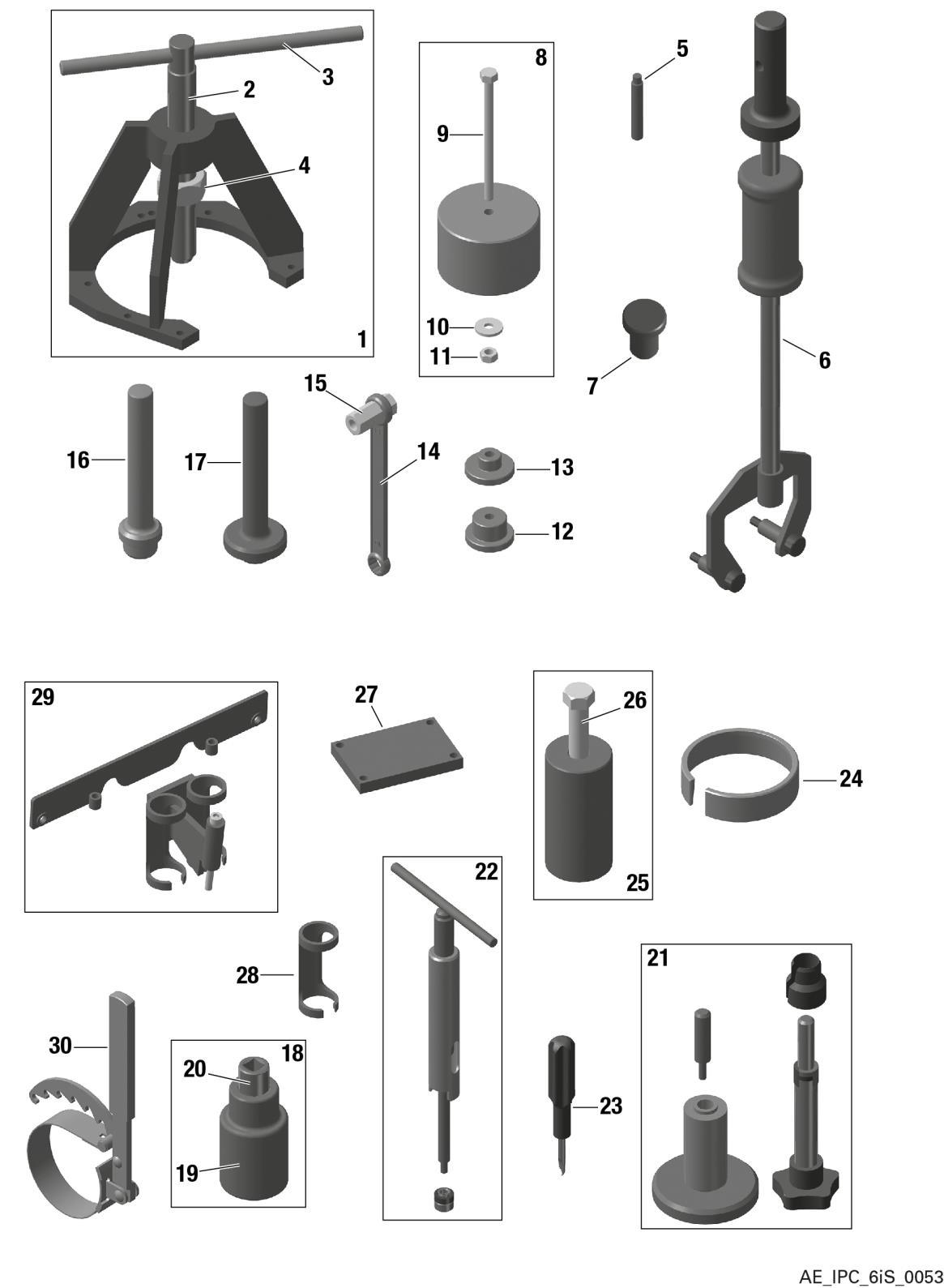

fig. 00-00-00-A
REPAIR TOOLS-A For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 877615 | Extractor Assy., | 686.71 | Add to Cart |
| 2 | 877580 | Pull-in Spindle M24x1,5 | 85.1 | Add to Cart |
| 3 | 276155 | Bolt 12x250 | 33.67 | Add to Cart |
| 5 | 240880 | Thread Bolt M8x50 | 2.93 | Add to Cart |
| 6 | 877660 | Puller Assy | 540.44 | Add to Cart |
| 7 | 877419 | Mushroom | 77.81 | Add to Cart |
| 8 | 876489 | Puller Assy., | 102.86 | Add to Cart |
| 10 | 827305 | Washer 6,2/18/2 | 2.18 | Add to Cart |
| 11 | 242214 | Hex.nut M6 | 0.22 | Add to Cart |
| 12 | 877597 | Press-in Mushroom | 40.42 | Add to Cart |
| 13 | 877595 | Press-in Mushroom | 86.31 | Add to Cart |
| 14 | 876470 | Ring Spanner 10/13 | 128.96 | Add to Cart |
| 16 | 276332 | Insertion Jig Assy., | 58.14 | Add to Cart |
| 17 | 877276 | Insertion Jig Assy., | 67.5 | Add to Cart |
| 18 | 877445 | Socket Wrench Assy. 41x12,5 | 177.03 | Add to Cart |
| 19 | 877440 | Socket Wrench A/f 41x20 | 136.37 | Add to Cart |
| 20 | 877460 | Reducing Socket 3/4"-1/2" | 29.53 | Add to Cart |
| 21 | 877802 | Circlip Installation Tool | 665.29 | Add to Cart |
| 22 | 877091 | Piston Pin Extractor Assy., | 276.82 | Add to Cart |
| 23 | 976380 | Monohook Circlip Remover | 193.62 | Add to Cart |
| 24 | 876967 | Piston Ring Spanner 84 Mm | 83.24 | Add to Cart |
| 25 | 877375 | Puller Assy | 126.28 | Add to Cart |
| 27 | 877263 | Cylinder Aligning Tool | 83.49 | Add to Cart |
| 28 | 877380 | Valve Spring Mounting Device | 333.87 | Add to Cart |
| 29 | 877387 | Valve Spring Jig Assy | 447.72 | Add to Cart |
| 30 | 877620 | Oil Filter Wrench | 68.33 | Add to Cart |
