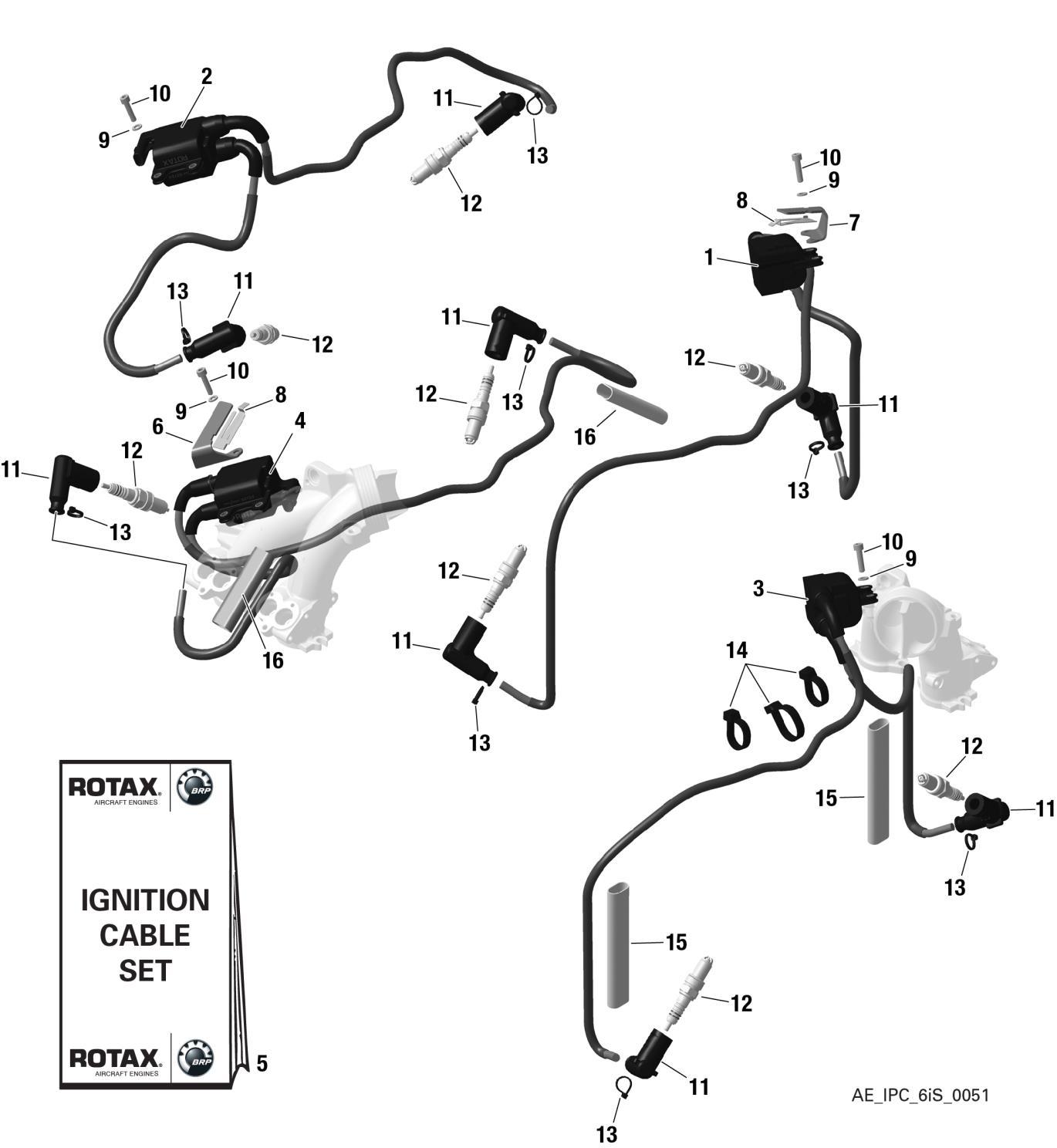

fig. 74-20-00
IGNITION COILS, IGNITION CABLE, SPARK PLUG CONNECTOR, SPARK PLUG For ROTAX 916IS
Click on Number to order Part
| Fig. | Part Number | Description | Unit/Price | Add to Cart |
|---|---|---|---|---|
| 1 | 864660 | Double Ignition Coil #1 | 365.9 | Add to Cart |
| 2 | 864661 | Double Ignition Coil #2 | 365.05 | Add to Cart |
| 3 | 864662 | Double Ignition Coil #3 | 363.75 | Add to Cart |
| 4 | 864663 | Double Ignition Coil #4 | 361.6 | Add to Cart |
| 5 | 864688 | Ignition Cable Set | 260.63 | Add to Cart |
| 7 | 951496 | Connector Bracket | 36.56 | Add to Cart |
| 8 | 251685 | Spring Hook | 24.08 | Add to Cart |
| 9 | 945830 | Lock Washer A5 | 0.2 | Add to Cart |
| 10 | 441341 | Allen Screw M5x20 Din 912 | 1.44 | Add to Cart |
| 11 | 265249 | Spark Plug Connector | 74.86 | Add to Cart |
| 12 | 297656 | Spark Plug 12 | 46.2 | Add to Cart |
| 13 | 866718 | Tie Wrap 94x2,5 Mm | 0.07 | Add to Cart |
| 14 | 866716 | Clamp | 0.5 | Add to Cart |
| 15 | 860734 | Glass Fiber-silicon Sheating 120 | 12.22 | Add to Cart |
| 16 | 860736 | Glass Fiber-silicon Sheating 75 | 5.42 | Add to Cart |
